Brass Bar

Terminal Ground Bar Screw Block Barrier Brass 10 Positions, customized size available,

  • Brand

    Safetypass
  • Item No

    SP038
  • Number of Contacts

    Depends on size
  • Customized Size

    Available

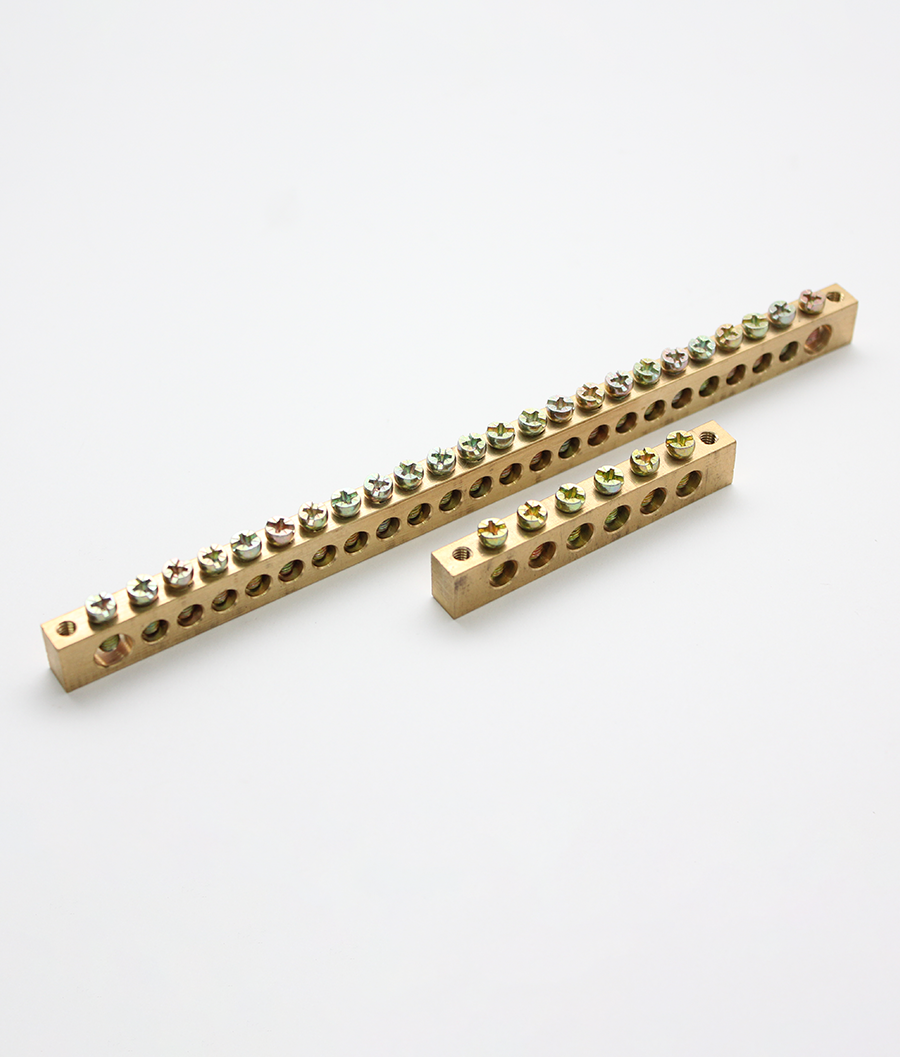

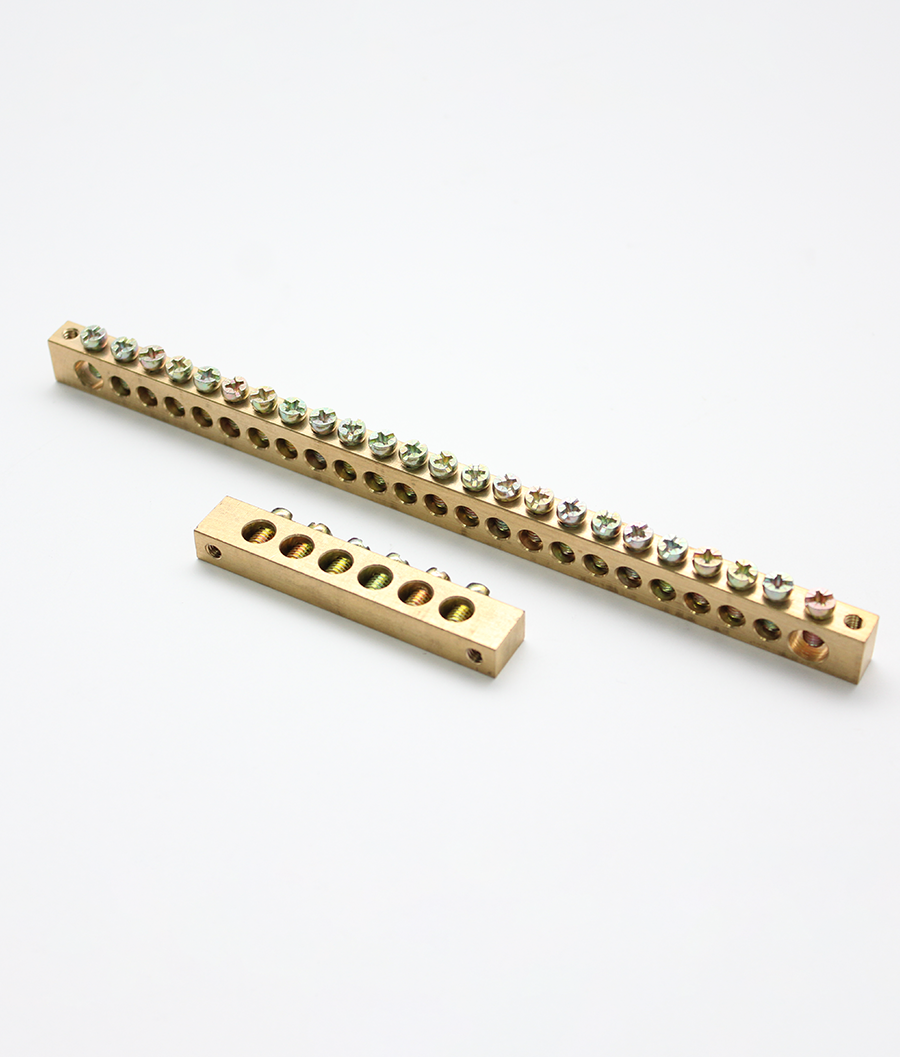

Terminal Ground Bar Screw Block Barrier Brass

• Brass terminal blocks and brass neutral links are offered in lengths of up to 1 meter.

 Additionally, we produce 4-way, 8-way, and 12-way brass neutral links, available with both tin-plated and nickel-plated finishes.

Customization according to customer specifications and requirements is also available.

Our range includes brass terminal blocks and neutral bars suitable for various panel boards, switch gears, and electrical switchboards.

With higher electrical conductive than those irons or alloy metal.

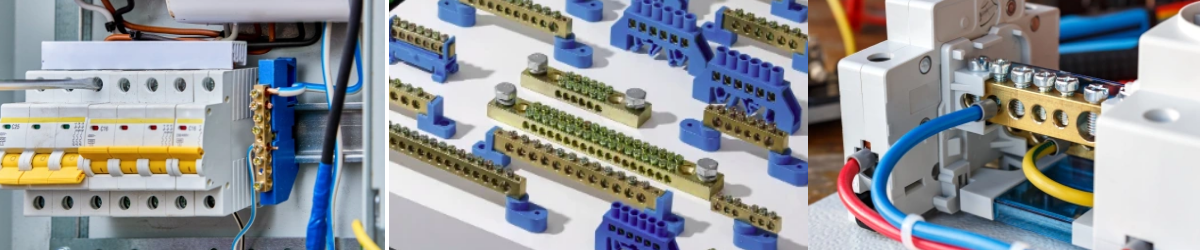

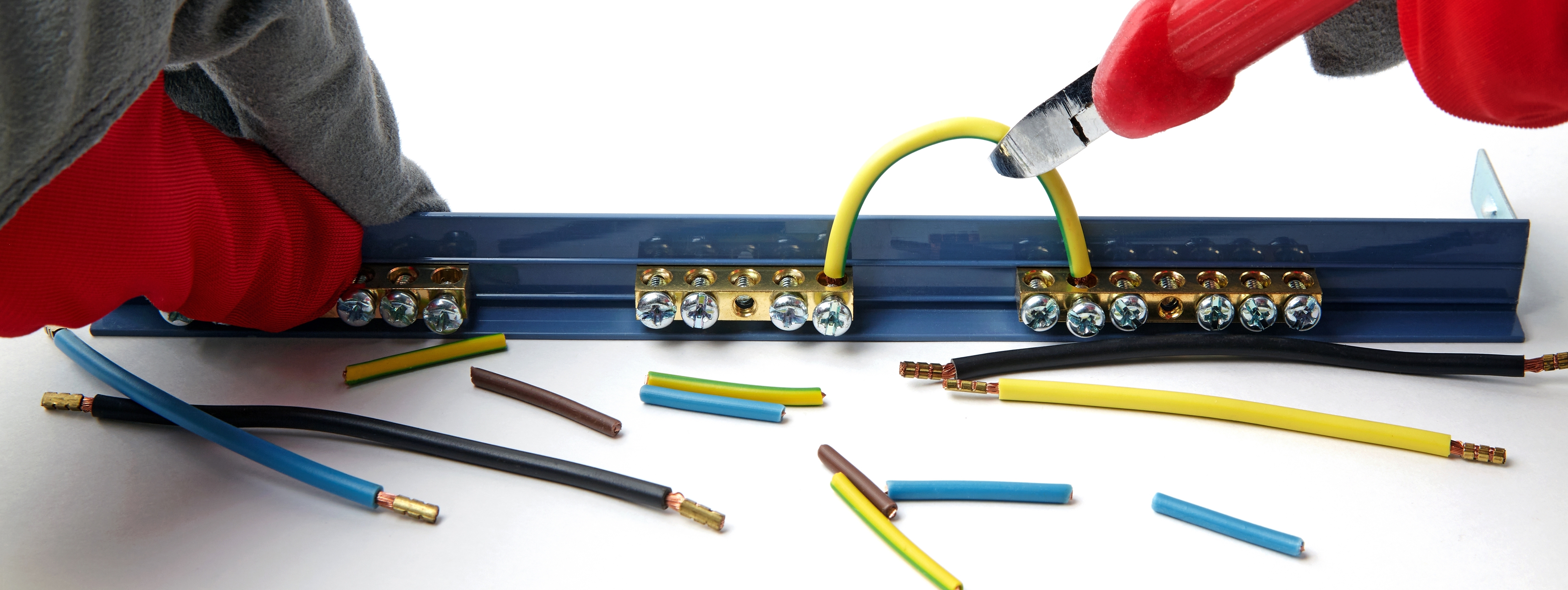

Application: Power distribution cabinets, distribution boxes, electrical equipment cabinets, lighting boxes, etc

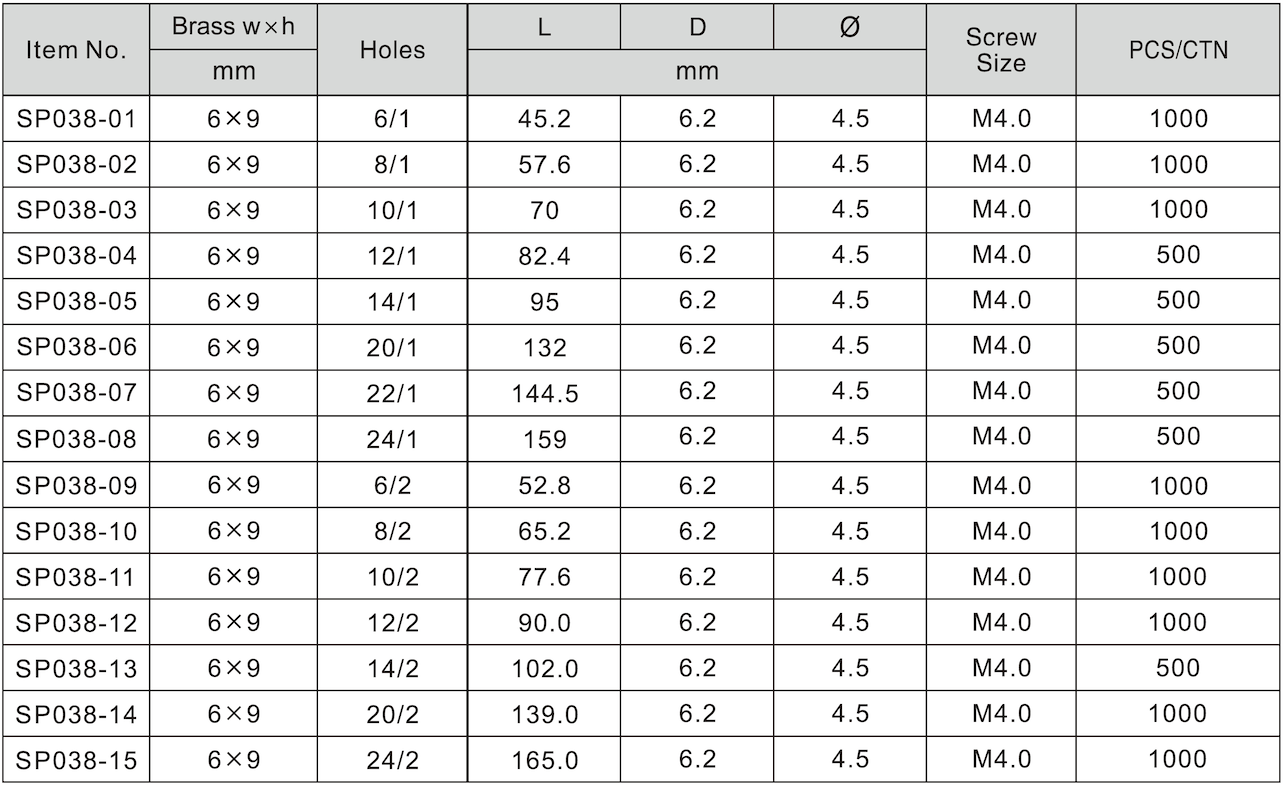

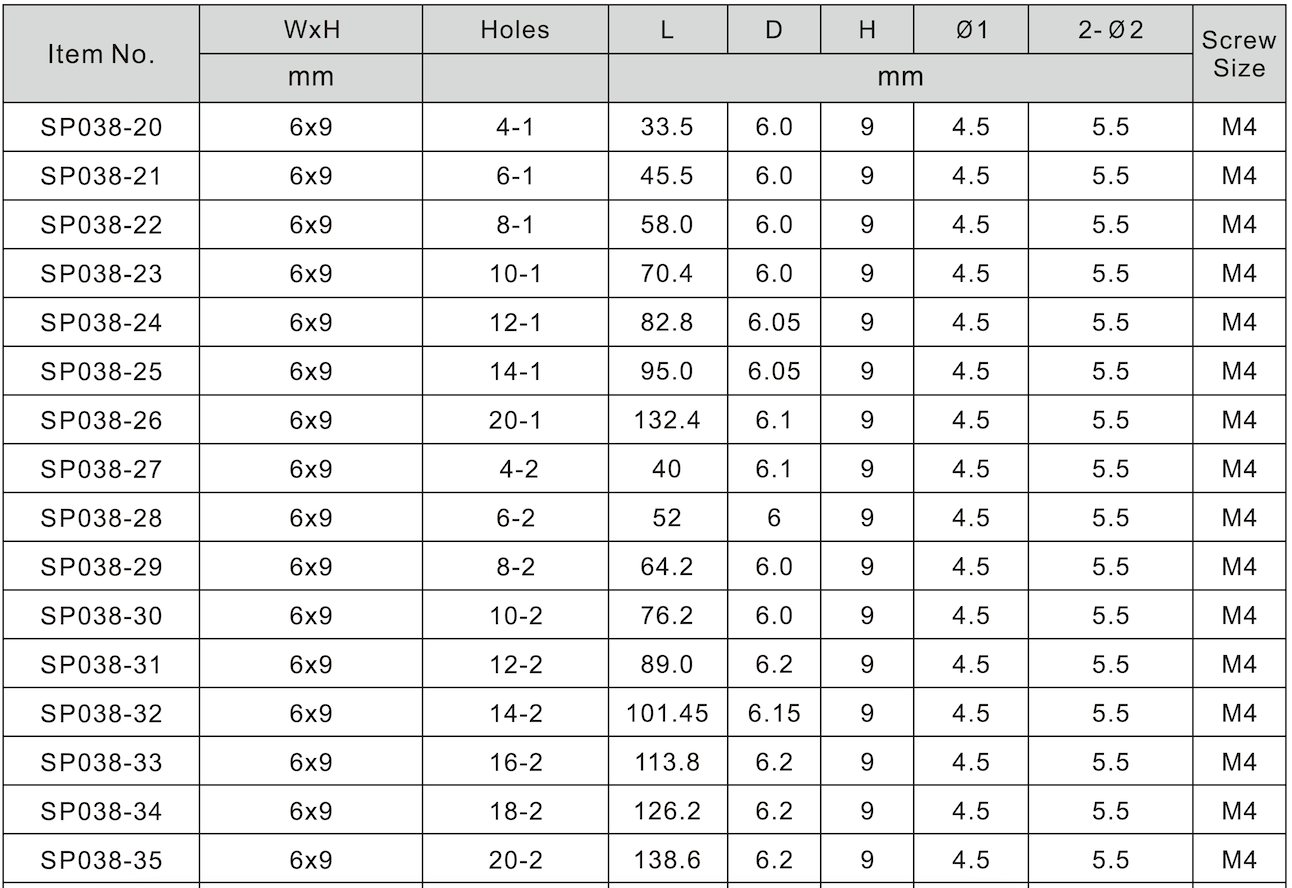

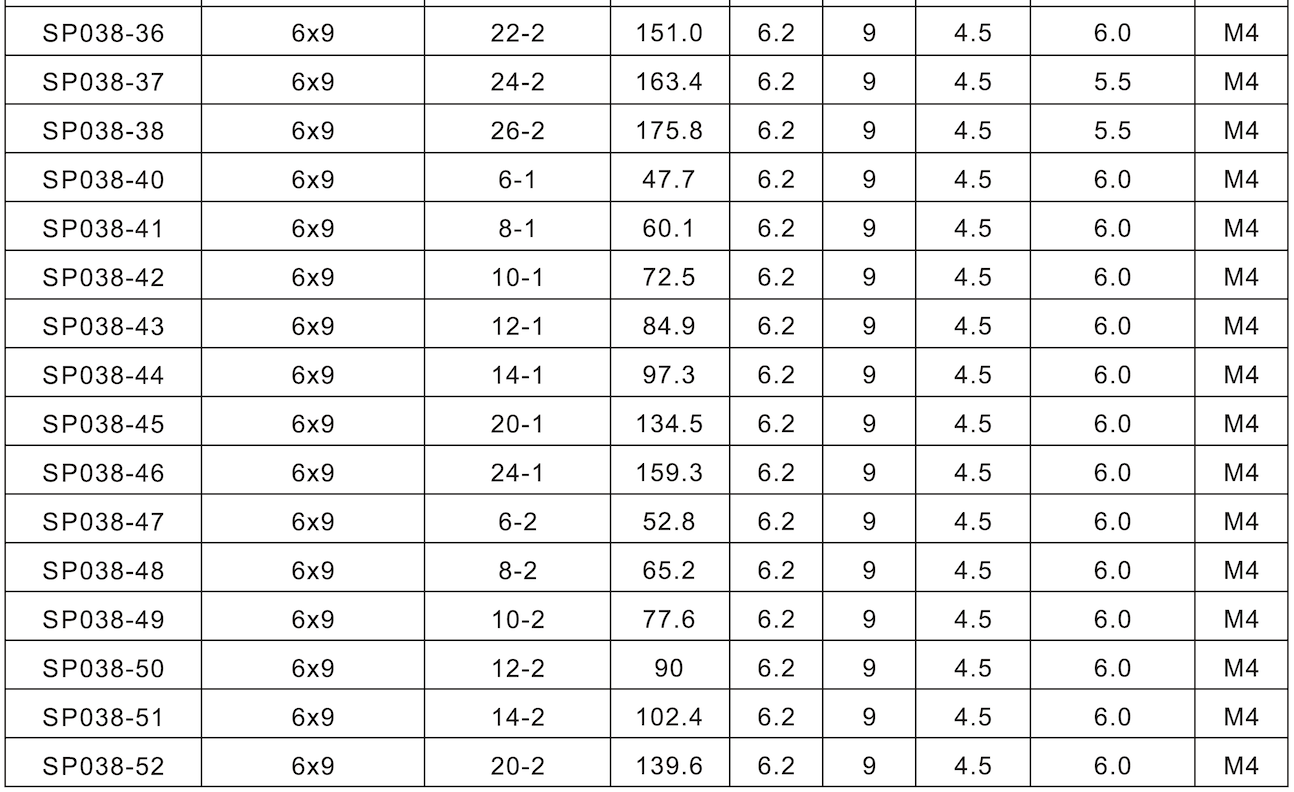

Product Attributes

Brand Safetypass
Service OEM,ODM available
Style/feature Screw Terminal, Screw
Type With cover
Insulator Yes
Means of connection Screw fixed
Number of poles Depends on size
Customized size Accept
Number of Contacts depends on size
Tolerance  ± 0.1mm
Design Structure Fixed
Type of production Manufacturing

Notes: Sizes can be made as requested

Supply Ability & Additional Information

Productivity 100, 000PCS/Day
Transportation Ocean,Air
Place of Origin China
Port Ningbo Port, Shanghai Port
Payment Type T/T
Incoterm  FOB,EXW,CIP



  We specialize in offering our clients a wide range of Brass Neutral Links. Supported by a team of specialists, these links are crafted using top-grade Brass and advanced technology by our skilled professionals. Our provided links are meticulously designed to comply with industry standards. Furthermore, they are available in various specifications to cater to the diverse needs of our esteemed clients. Our range undergoes rigorous testing on various parameters to ensure high quality.


Frequently Asked Questions

1. Can I ask for sample?

Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.

2. If I want get a products price list, where I can get it?

Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.

Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.

3. My product needs put our own logo on product or packing, what should I do?

If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

4. How many years Antong starts operate factory to produce terminal blocks?

Since 1989, AnTong has started factory operation, it’s almost 35 years.

5. What’s the process to develop a new product with Antong?

Step 1: Send picture/drawing to your service representative to confirm if we can produce it based on current technique we have.

Step 2: After make sure we can produce the item, we will quote mold fee MOQ of this new products.

Notes: If there’s an exist product with client, we we prefer client send sample to us due to provide more accurate price quotation and material identification.
