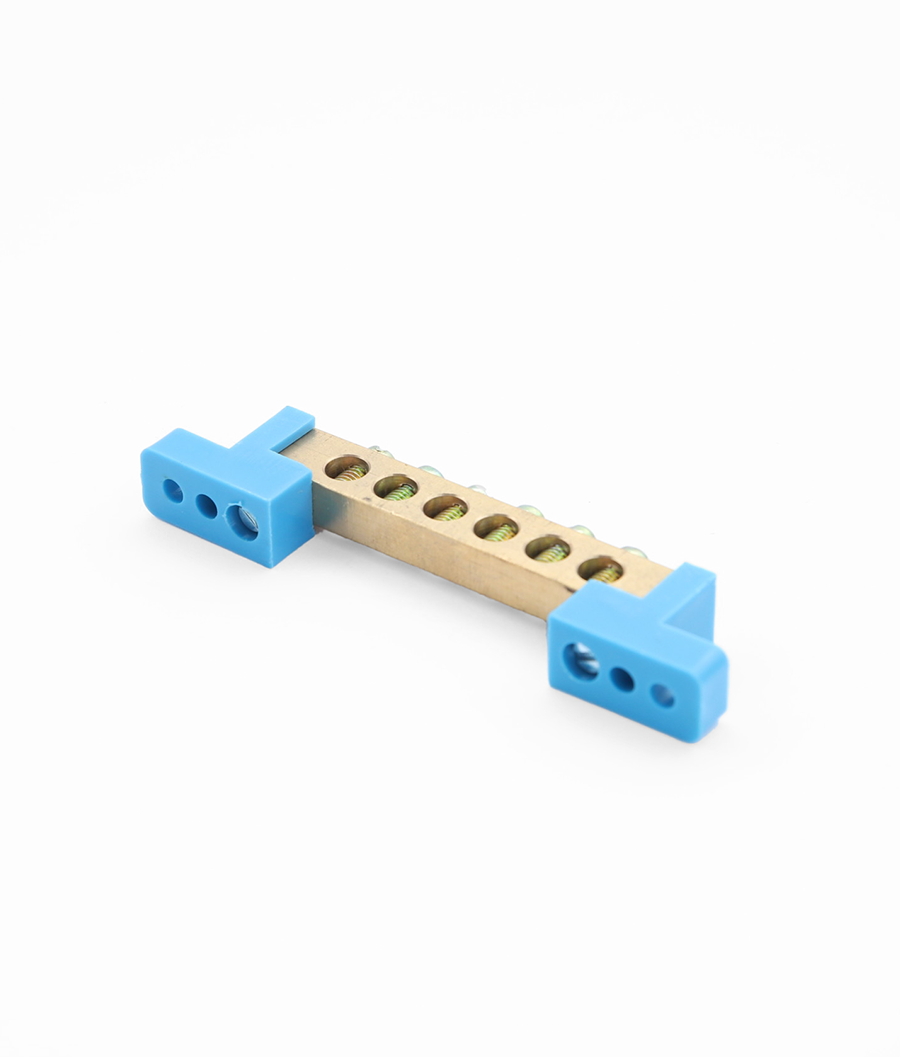

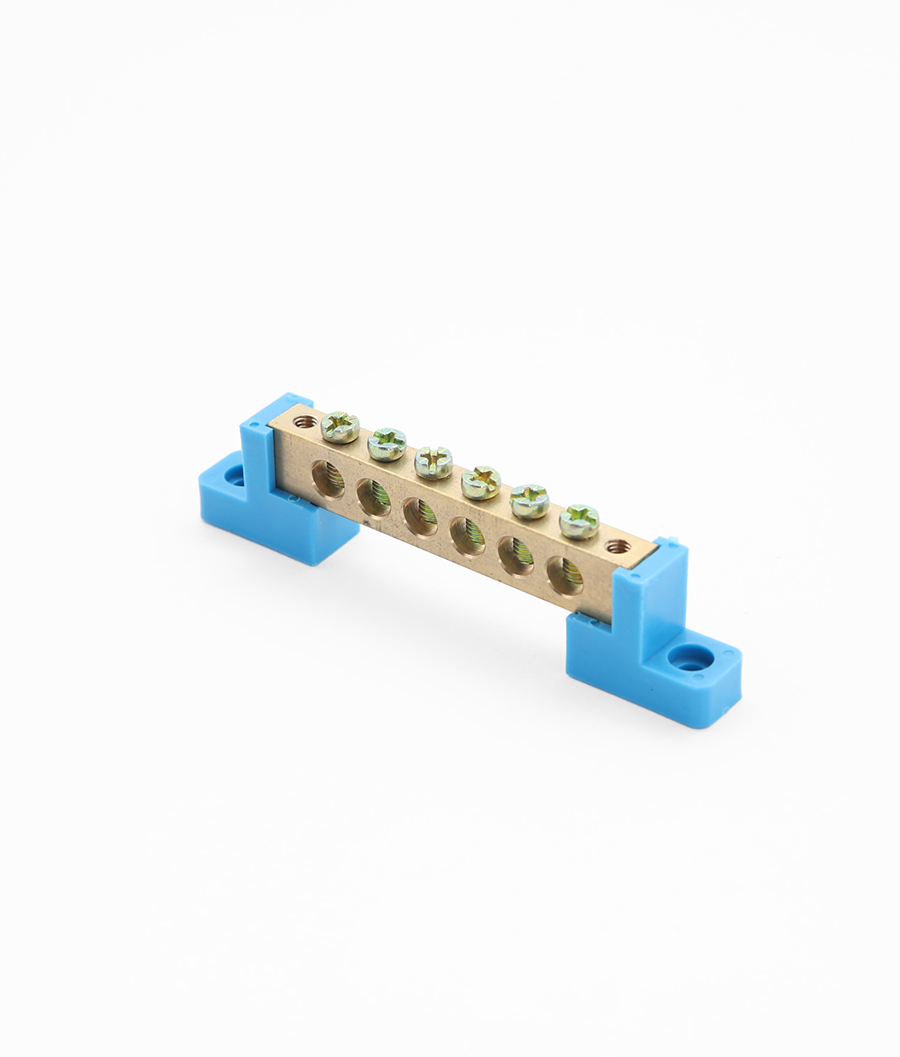

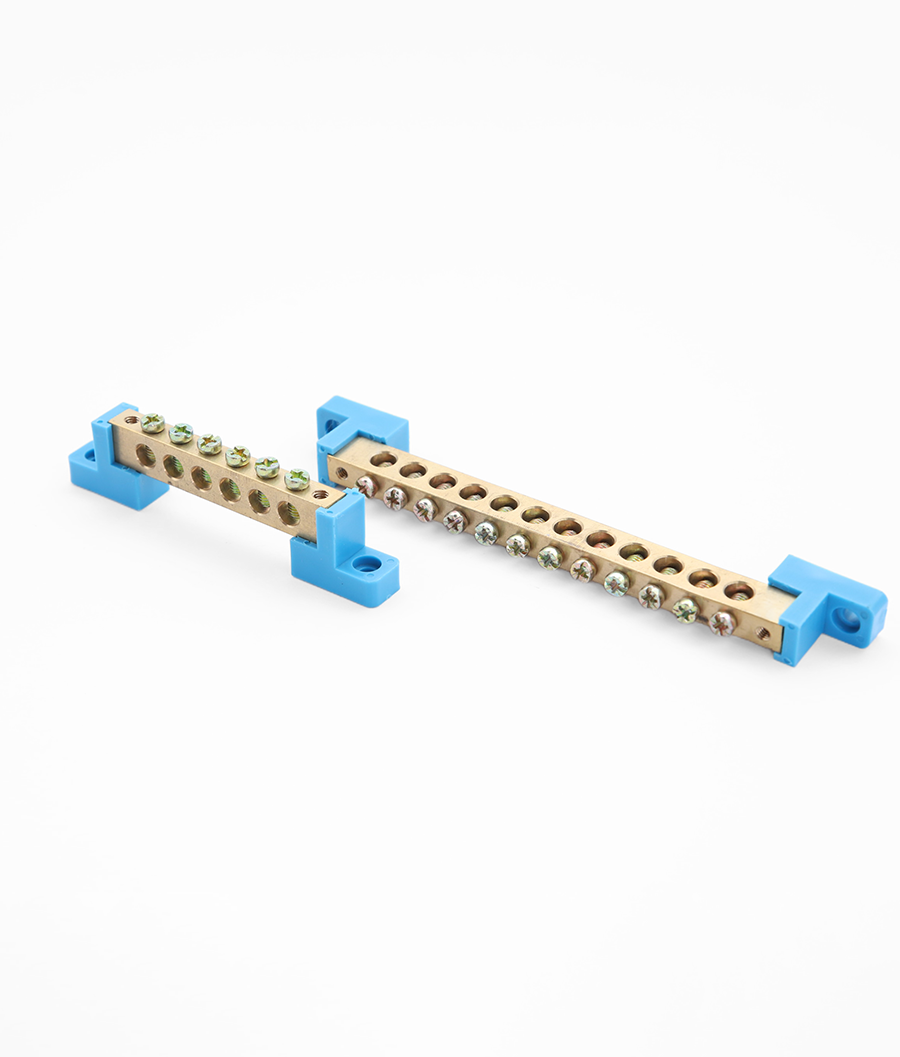

Earthing Brass Bar with Square Holders
Neutral Copper Terminal Block, Copper Bar with Holder Brass terminal grounding strip bus bar blocks.
Item No
SP029Standard Color
Blue. Green, GrayShell Plastic Material
PAConductor
Brass
- Product Details
Brass terminal grounding strip bus bar block with various number of screws and 2 feet/stands
•High quality plastic base ensures great mechanical strength and durability.
•Widely used in power distribution cabinets, distribution boxes, mechanical equipment factories, electrical equipment factories, etc.
•Closed back design completely insulates power from the mounting surface
•Reinforced fireproof base with tin plated pure electrical copper for maximum
•It is made of brass conductors. With higher electrical conductive than those irons or alloy metal. Widely used in almost all electronic equipment, for distribution box, distribution case, and so on.
•Durable for use and easy to operate, good for a stable and long lasting performance.
Product Attributes
| Brand | Safetypass |
| Service | OEM,ODM available |
| Style/feature | Screw Terminal, Screw |
| Application | Cable |
| Means of connection | Screw fixed |
| Shell plastic material | PA: Polyamide |
| PA features | Good insulation, heat resistance, fire-resistance |
| Number of poles | Depends on size |
| Customized size | Accept |
| Conductor Material | Brass |
| Screw Material | Brass |
| Number of Contacts | Depends on size |
| Color | Blue / Gray/Green, etc |
| Tolerance | ± 0.1mm |
| Production Process | Injection molding |
| Type of production | Manufacturing |
Notes:

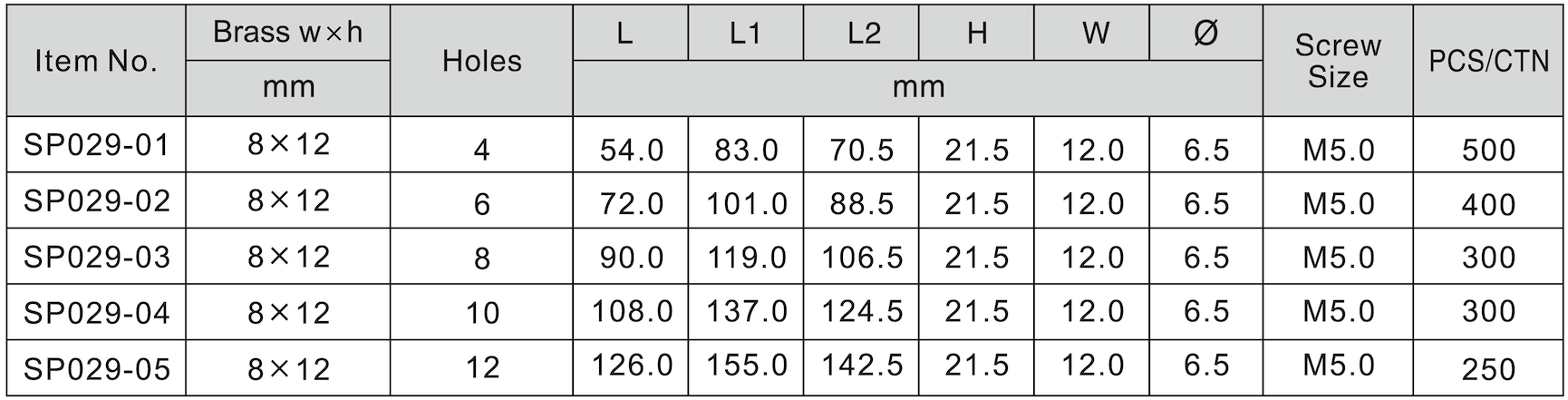

What does 4-2 means in the table above?
4: the number of holes/screws of whole strip.
2: means 2 empty holes on the edge of the strip.

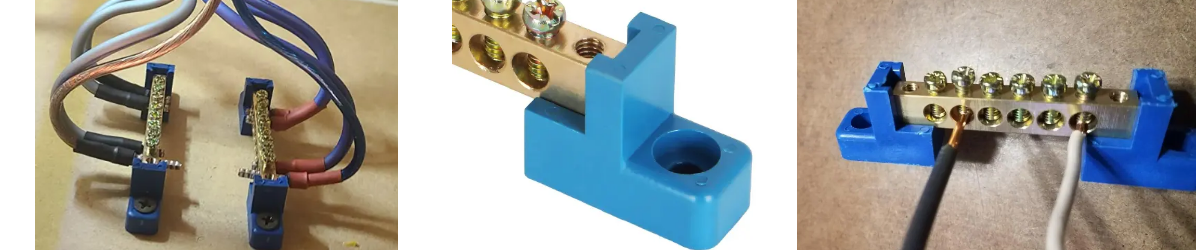

Application
Supply Ability & Additional Information
| Productivity | 40, 000, 000PCS/Year |
| Transportation | Ocean,Air |
| Place of Origin | China |
| Supply Ability | 40, 000, 000PCS/Year |
| Port | Ningbo Port |
| Payment Type | T/T |
| Incoterm | FOB,EXW,CIP |
Frequently Asked Questions
1. Can I ask for sample?
Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.
2. If I want get a products price list, where I can get it?
Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.
Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.
3. My product needs put our own logo on product or packing, what should I do?
If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.
4. How many years Antong starts operate factory to produce terminal blocks?
Since 1989, AnTong has started factory operation, it’s almost 35 years.
