PRODUCT

INDUSTREY PRODUCT

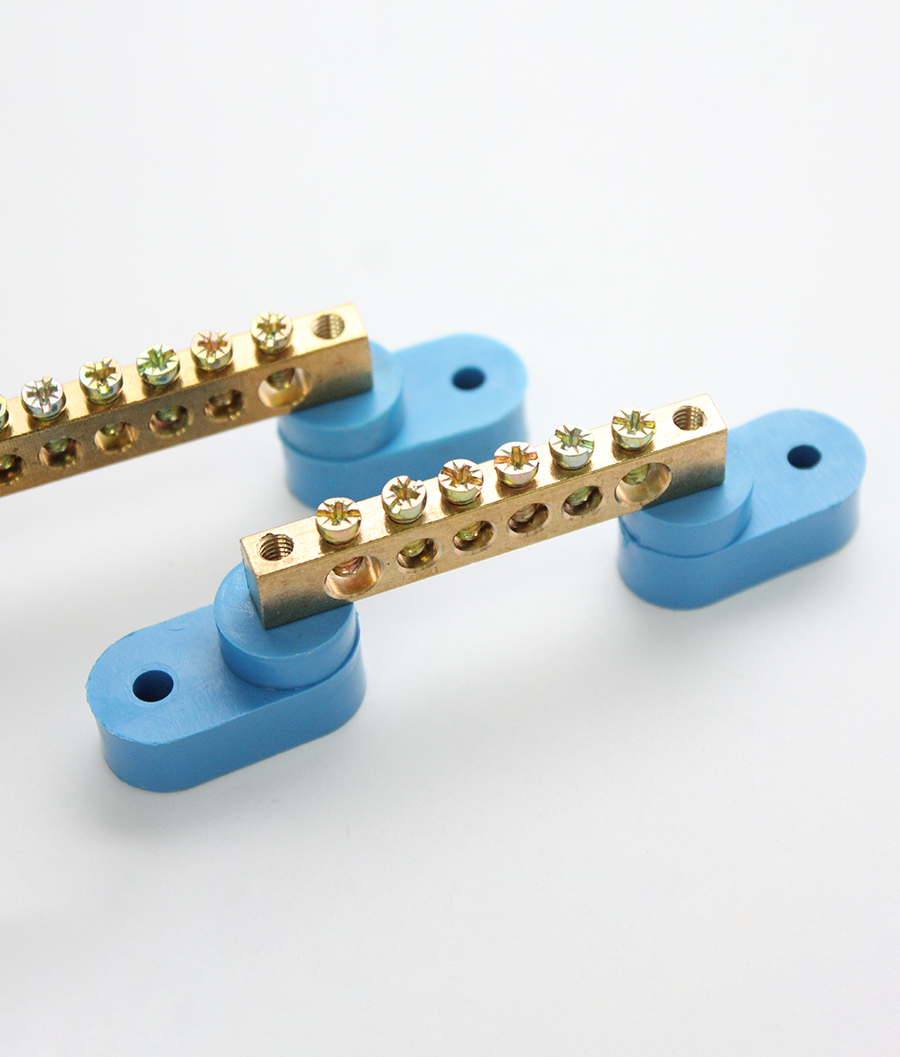

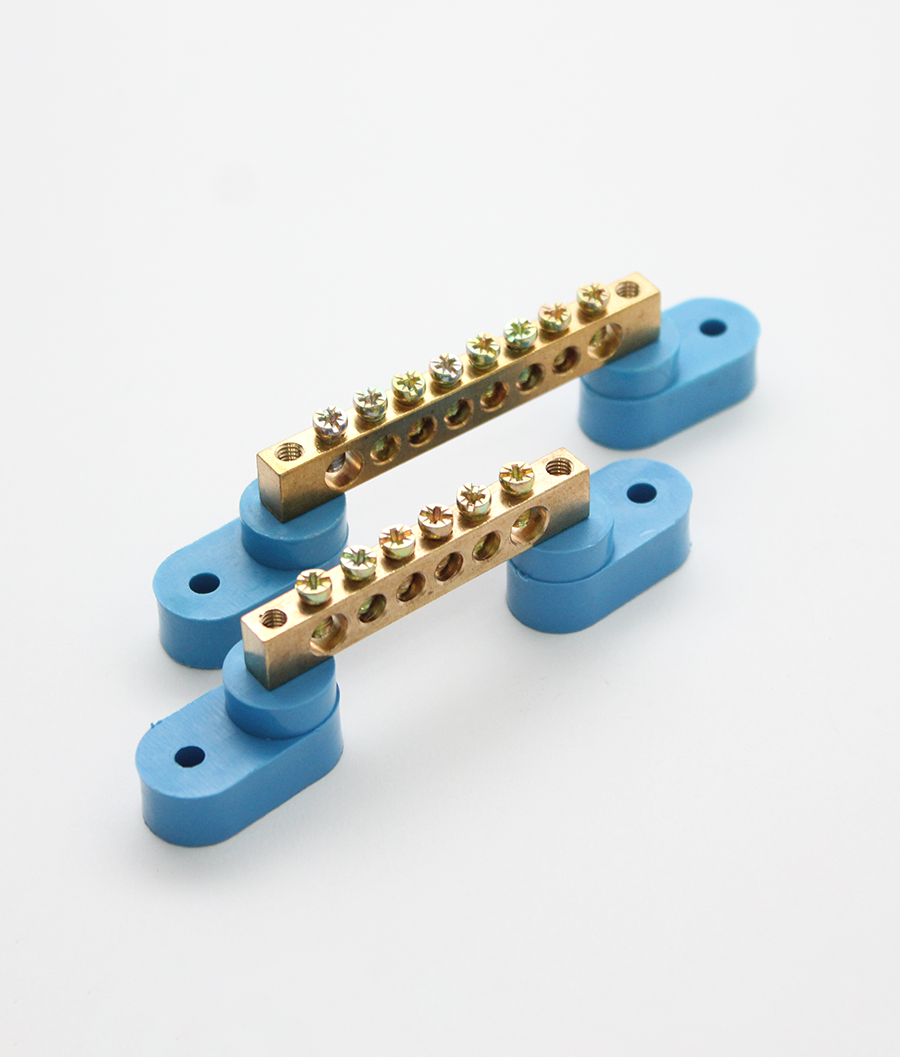

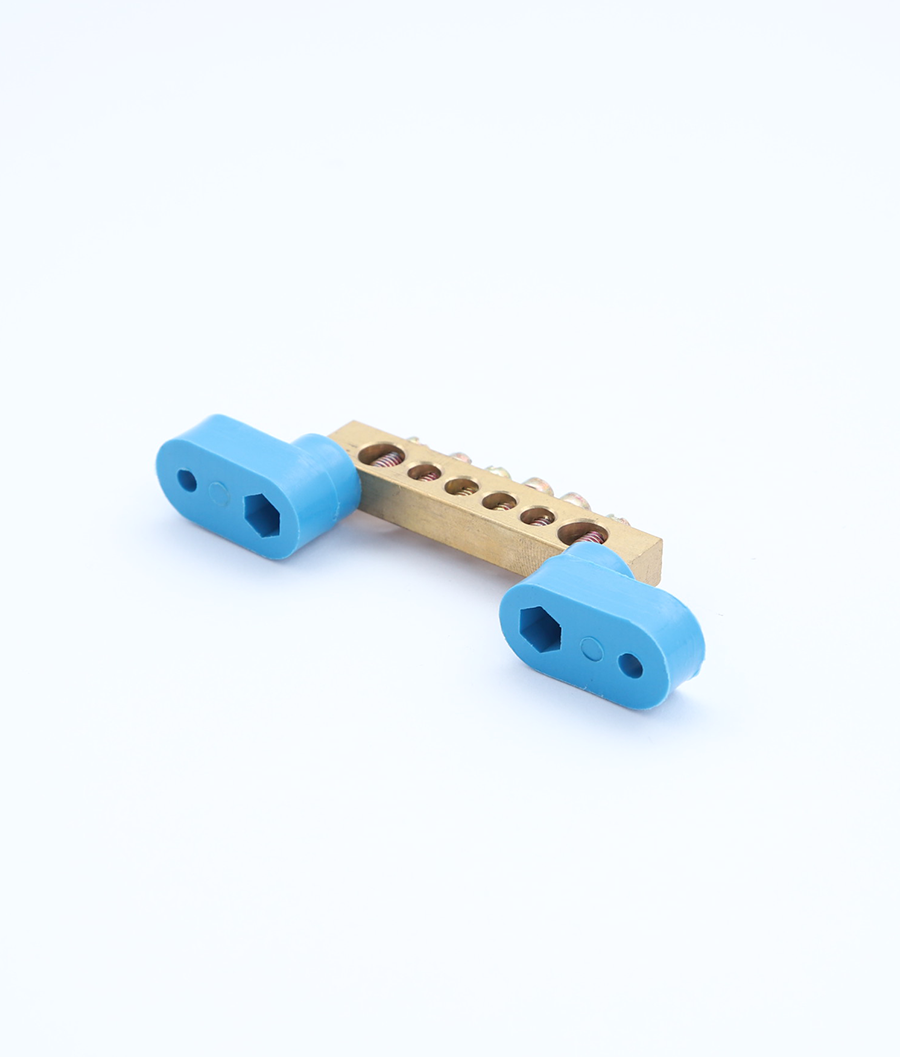

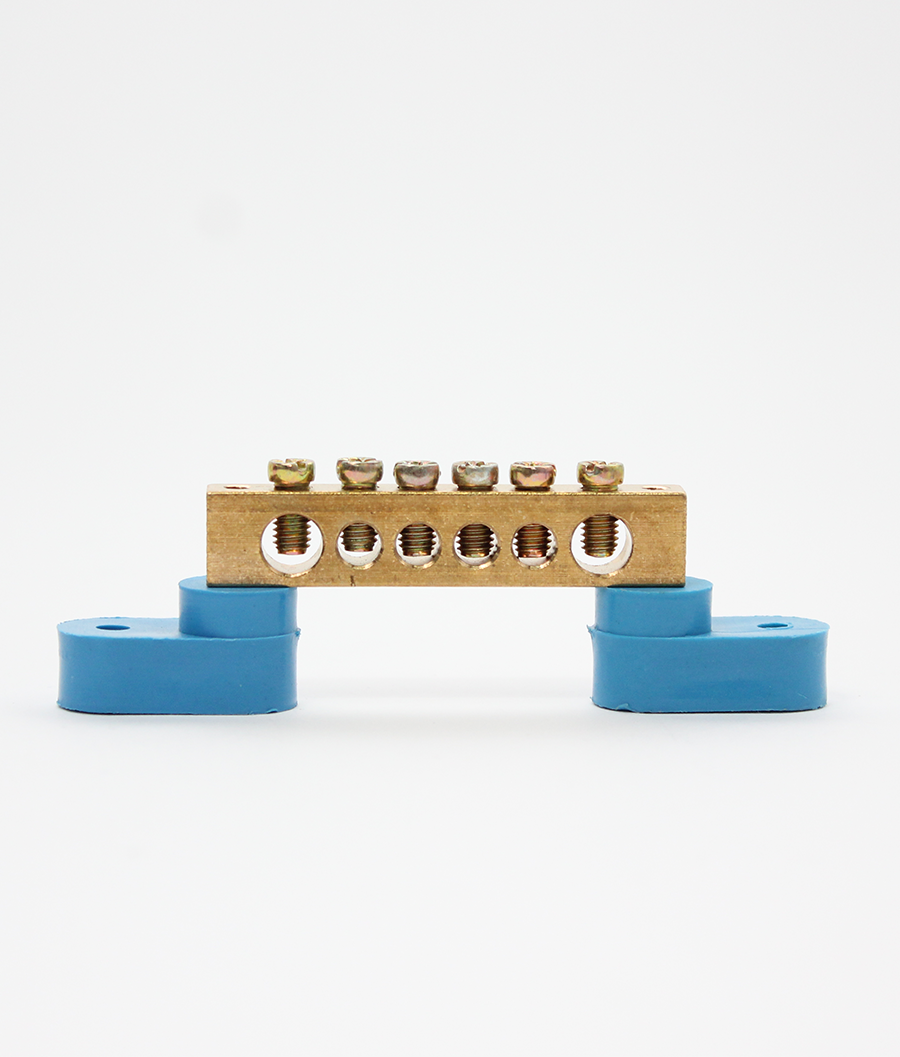

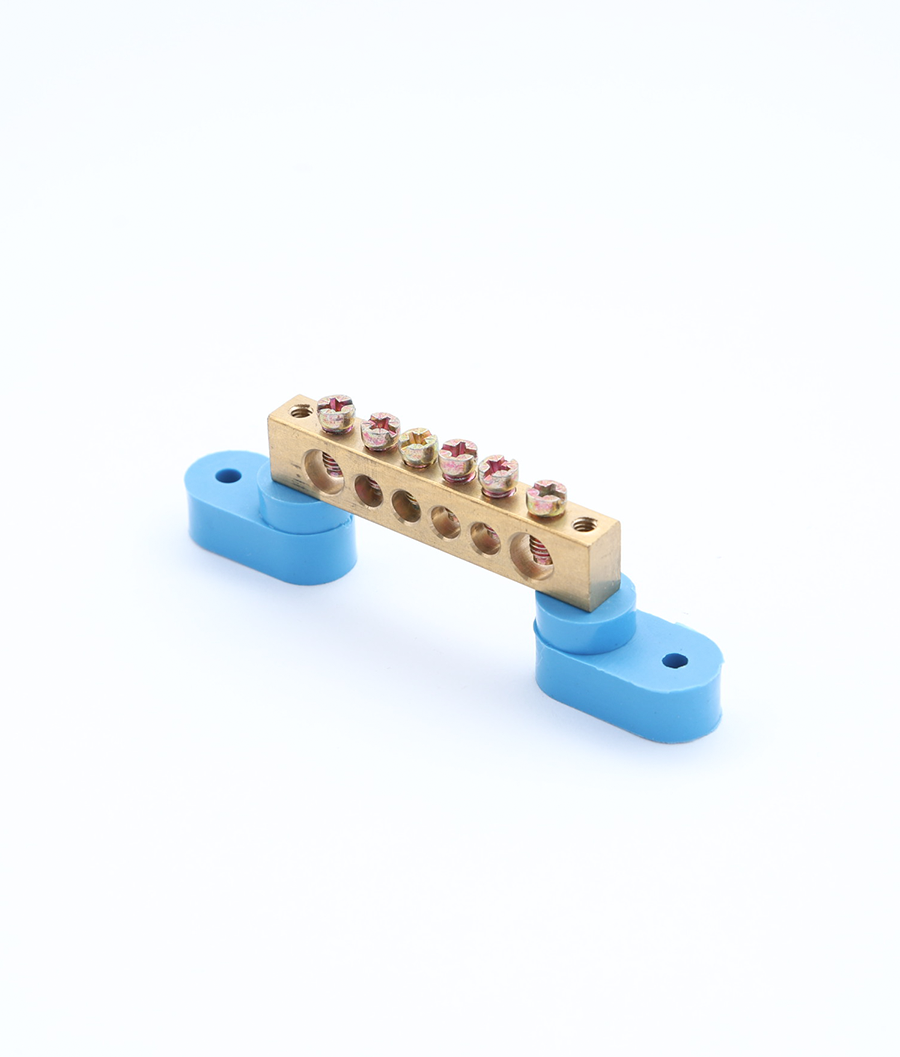

Earthing Brass Bar with Rounded Holders

Neutral Copper Terminal Block, Copper Bar with Holder Brass terminal grounding strip bus bar blocks.

  • Item No

    SP028
  • Shell plastic material

    PA
  • Standard Color

    Blue, Green, Gray
  • Conductor

    Brass
  • Screws

    Steel, Zinc Plated
Brass terminal grounding strip bus bar block with various number of holes/screws and 2 feet/stands


•High quality plastic base ensures great mechanical strength and durability.

•Widely used in power distribution cabinets, distribution boxes, mechanical equipment factories, electrical equipment factories, etc.

•Closed back design completely insulates power from the mounting surface

•Reinforced fireproof base with tin plated pure electrical copper for maximum

It is made of brass conductors. With higher electrical conductive than those irons or alloy metal. Widely used in almost all electronic equipment, for distribution box, distribution case, and so on.

Durable for use and easy to operate, good for a stable and long lasting performance.

Product Attributes

Brand Safetypass
Service OEM,ODM available
Style/feature Screw Terminal, Screw
Application Cable
Means of connection Screw fixed
Shell plastic material  PA: Polyamide
PA  features Good insulation, heat resistance, fire-resistance
Number of poles Depends on size
Customized size Accept
Conductor Material Brass
Screw Material Brass
Number of Contacts Depends on size
Color   Blue / Gray/Green, etc
Tolerance  ± 0.1mm
Production Process Injection molding
Type of production Manufacturing

Notes:

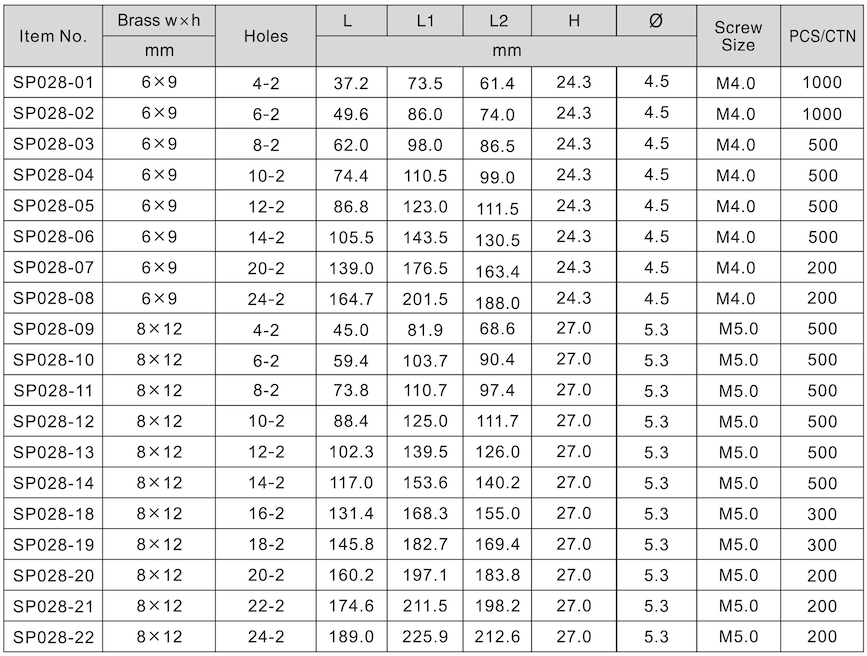

What does 4-2 means in the table above?

4: the number of holes/screws of whole strip.

2: means 2 empty holes on the edge of the strip.

Application

Supply Ability & Additional Information

Productivity 40, 000, 000PCS/Year
Transportation Ocean,Air
Place of Origin China
Supply Ability 40, 000, 000PCS/Year
Port Ningbo Port
Payment Type T/T
Incoterm  FOB,EXW,CIP


Frequently Asked Questions

1. Can I ask for sample?

Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.

2. If I want get a products price list, where I can get it?

Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.

Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.

3. My product needs put our own logo on product or packing, what should I do?

If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

4. How many years Antong starts operate factory to produce terminal blocks?

Since 1989, AnTong has started factory operation, it’s almost 35 years.
