Earthing Connector with din rail holder type 4
Antong’s Type 4 earthing connector with DIN rail holder offers a compact and reliable grounding solution for industrial control systems. Designed for fast installation, it features a modular brass bar and secure terminal positions.

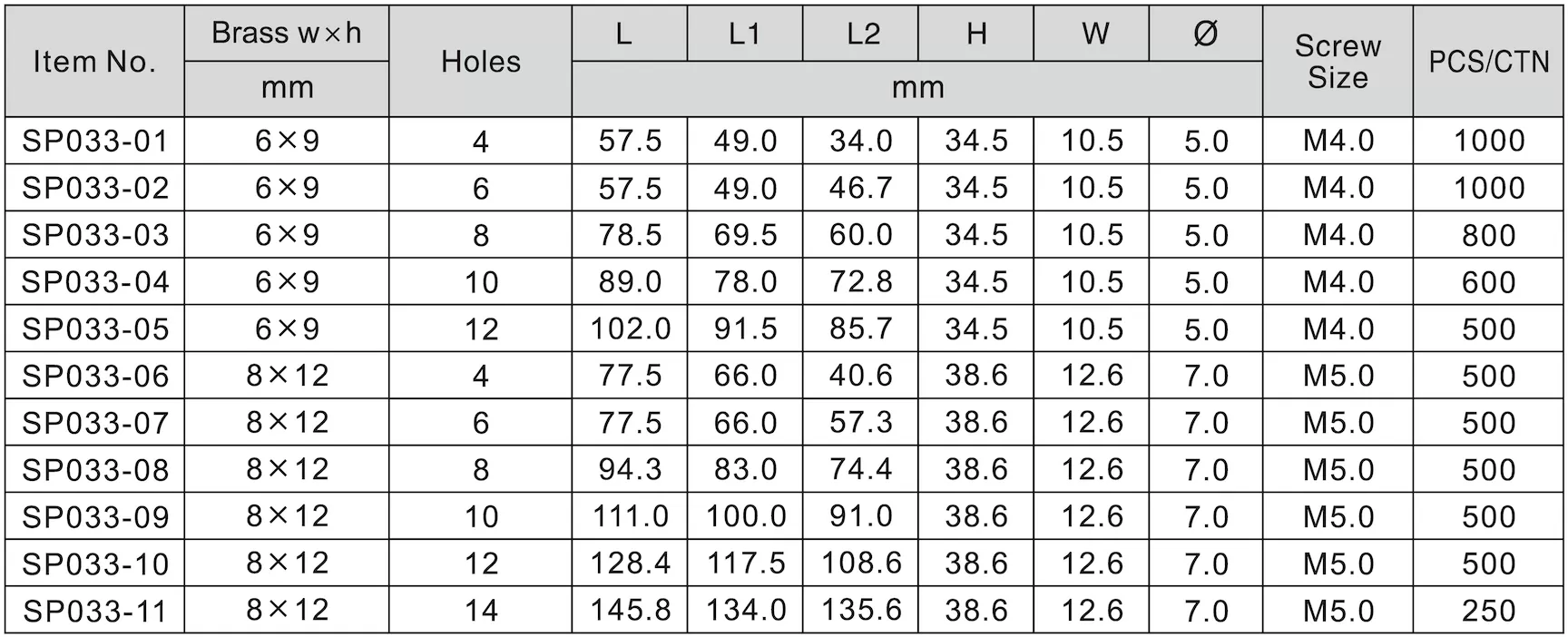

ItemNo
SP033.01~SP033.11Contact Material
BrassTermination Method
Screw Down, and hold on Din RailWorking Temperature
-℃Material
PANumber of Ways
Depends on number of holesInserts
BrassHousing
PAScrews
Steel, Zinc Plated
- Product Details

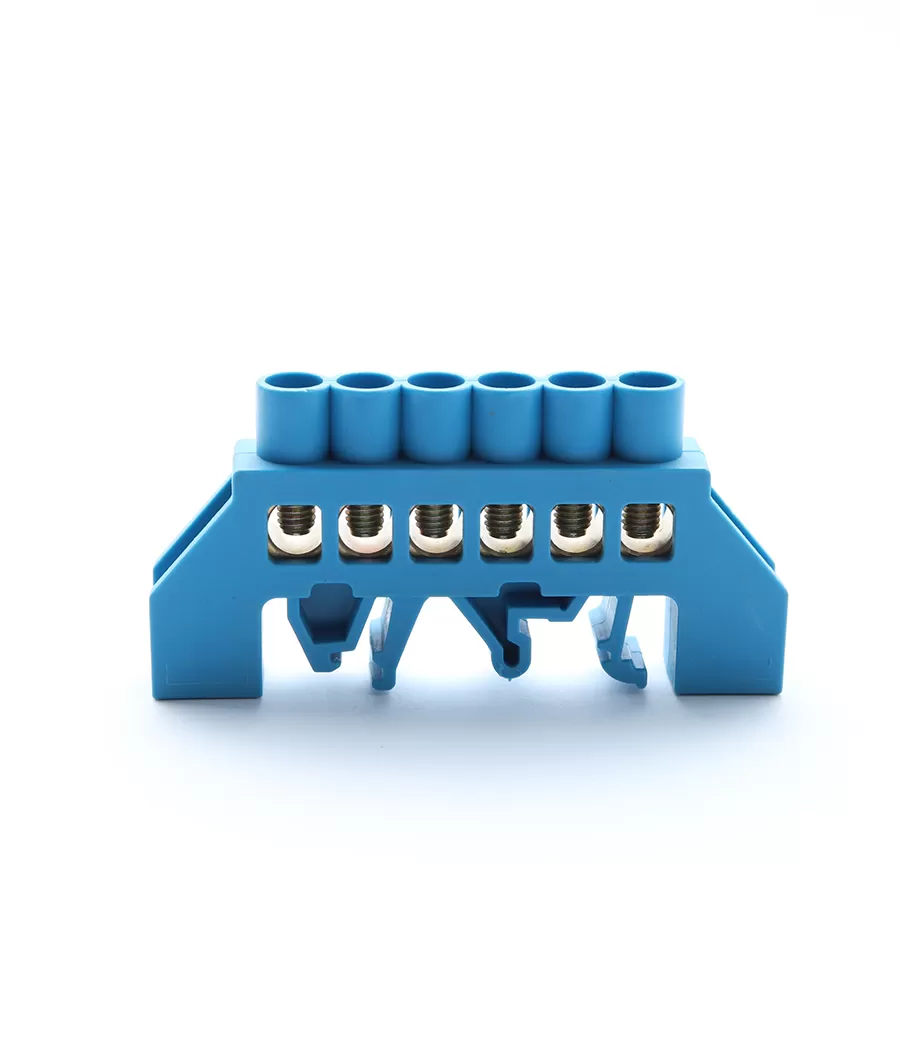

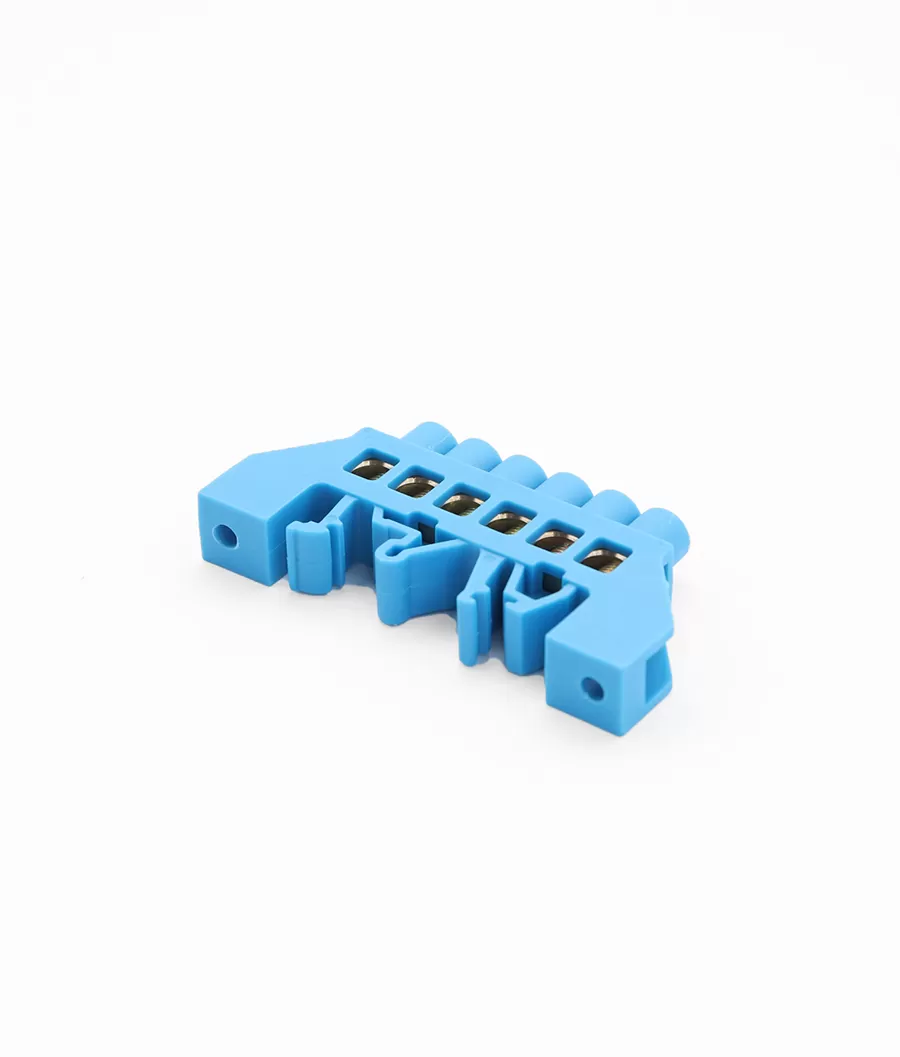

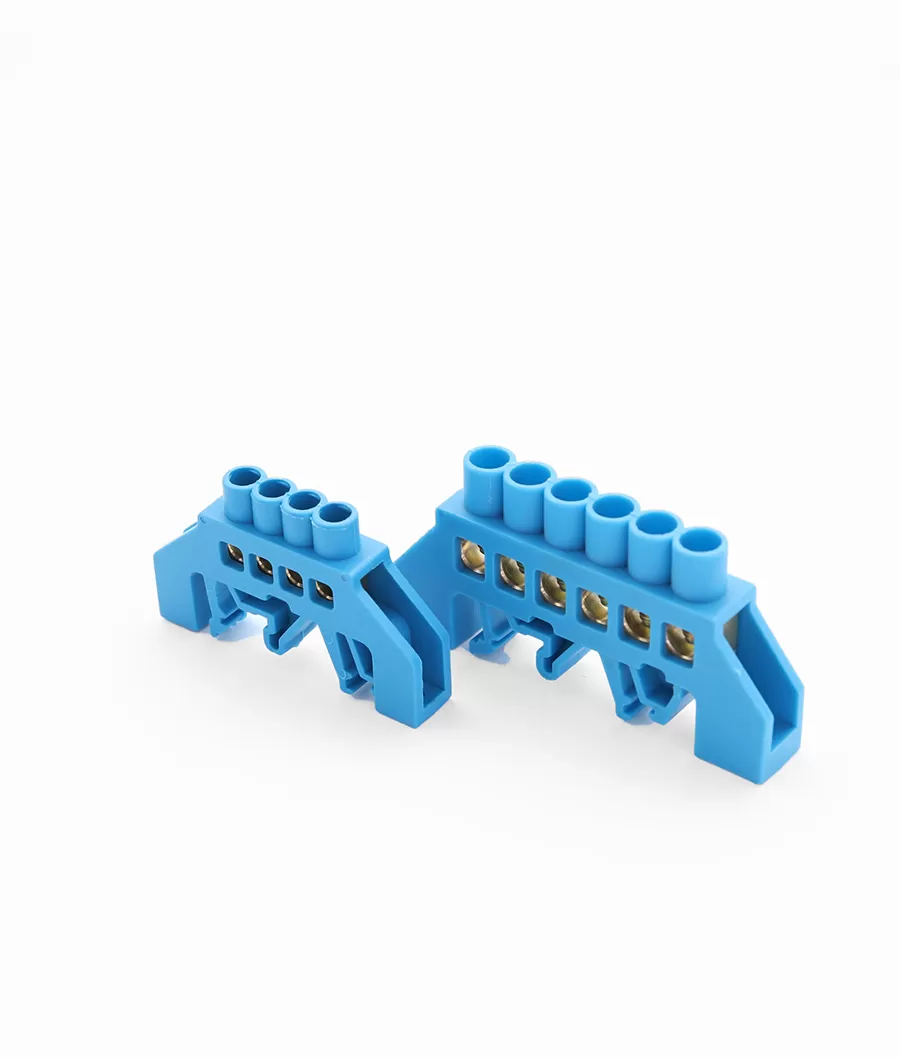

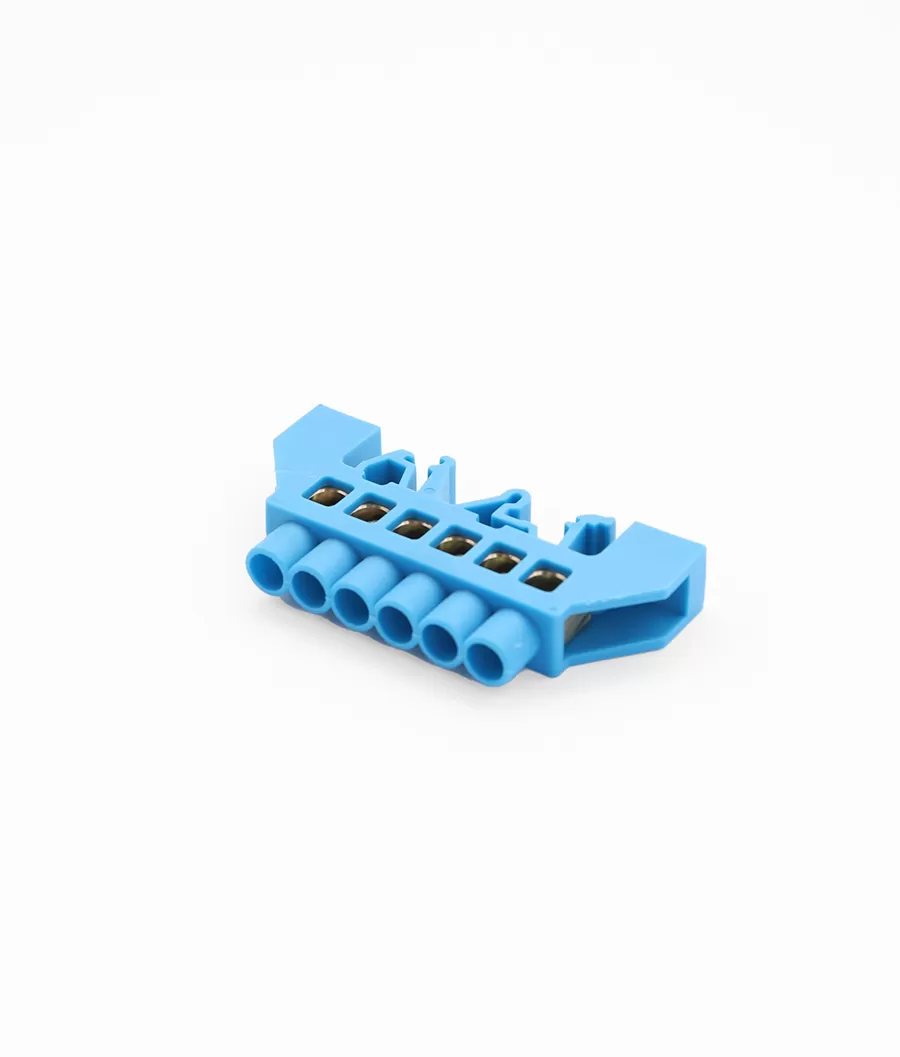

Earthing Connection With Din Rail Holder
•High quality plastic base ensures great mechanical strength and durability.
•Busbars with Din rail type insulator are designed for electrical and mechanical connection of neutral, protective and phase conductors.
• Structurally, Din rail busbar are made of a brass busbar mounted on a plastic insulator or in an insulator made of self-extinguishing plastic.

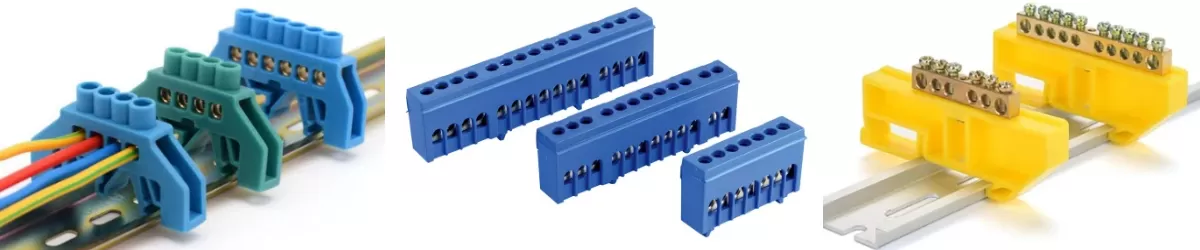

•Can be mounted on a DIN rail or mounting panel. The tire insulator is made of non-flammable materials.
Product Attributes
| Brand | Safetypass |
| Service | OEM,ODM available |
| Style/feature | Screw Terminal, Screw |
| Application | Cable |
| Means of connection | Screw fixed |
| Shell plastic material | PA: Polyamide |
| PA features | Good insulation, heat resistance, fire-resistance |
| Shell option | PA |
| Number of poles | Depends on size |
| Customized size | Accept |
| Conductor Material | Brass |
| Screw Material | Brass |
| Number of Contacts | Depends on size |
| Color | Blue / Gray/Green, etc |
| Tolerance | ± 0.1mm |
| Production Process | Injection molding |
| Type of production | Manufacturing |
Supply Ability & Additional Information
| Productivity | 40, 000, 000PCS/Year |
| Transportation | Ocean,Air |
| Place of Origin | China |
| Supply Ability | 40, 000, 000PCS/Year |
| Port | Ningbo Port |
| Payment Type | T/T |
| Incoterm | FOB,EXW,CIP |
Frequently Asked Questions
1. Can I ask for sample?
Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.
2. If I want get a products price list, where I can get it?
Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.
Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.
3. My product needs put our own logo on product or packing, what should I do?
If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

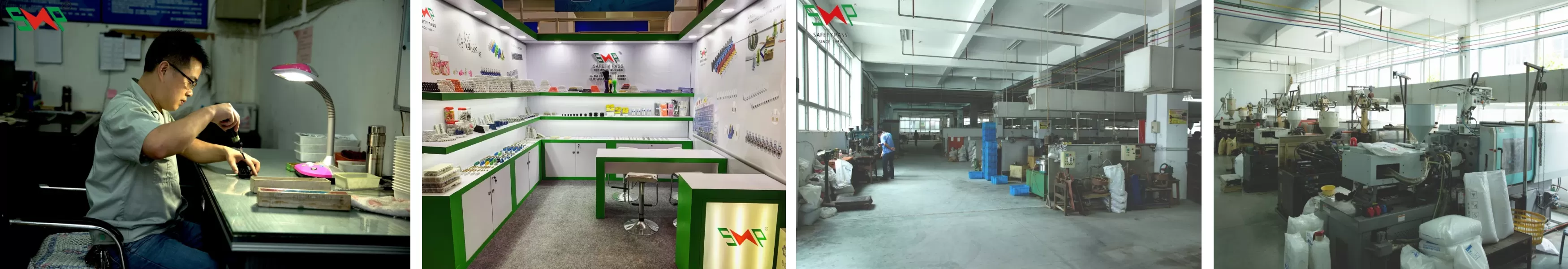

4. How many years Antong starts operate factory to produce terminal blocks?
Since 1989, AnTong has started factory operation, it’s almost 35 years.
