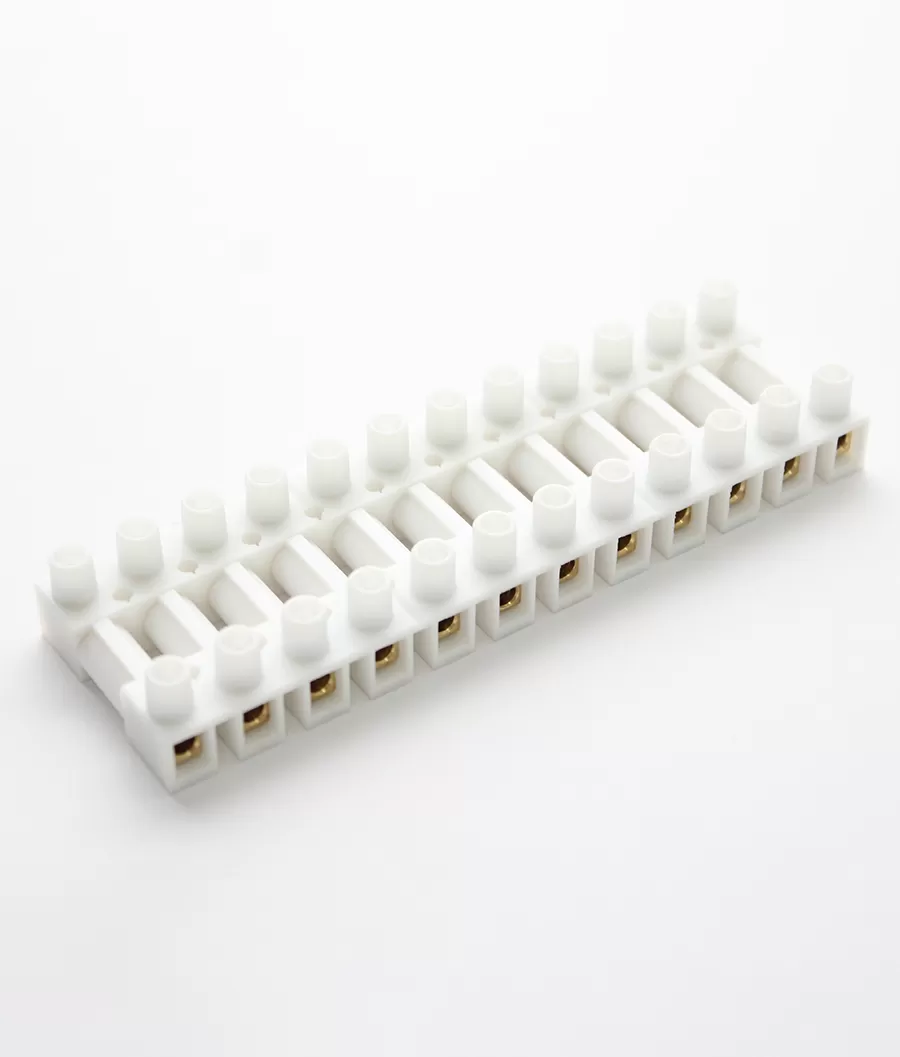

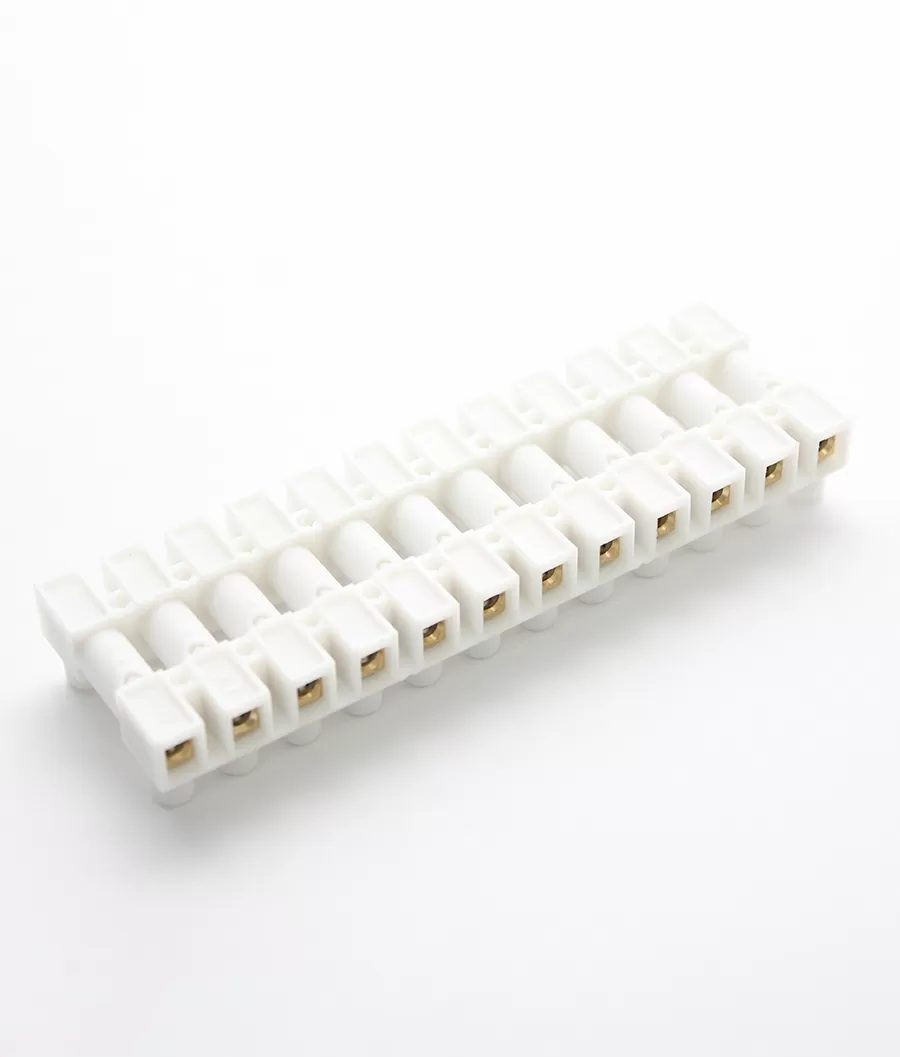

Male & Female Terminal Block /Plug-in Connector Strips -PA6 (Type 3)

Antong’s plug-in connector strips provide quick and modular electrical connections using a male and female terminal structure. Ideal for control systems, lighting units, and equipment wiring that require easy disconnection and reassembly.

  • ItemNo

    SP011.10
  • Contact Material

    Brass
  • Termination Method

    Screw Down
  • Working Temperature

    Glow Wire Test: 850℃℃
  • Material

    PA6
  • Number of Ways

    12
  • Inserts

    Brass
  • Housing

    PA6
  • Screws

    Steel, Zinc Plated

Electric Male Female Pluggable Wire Connector

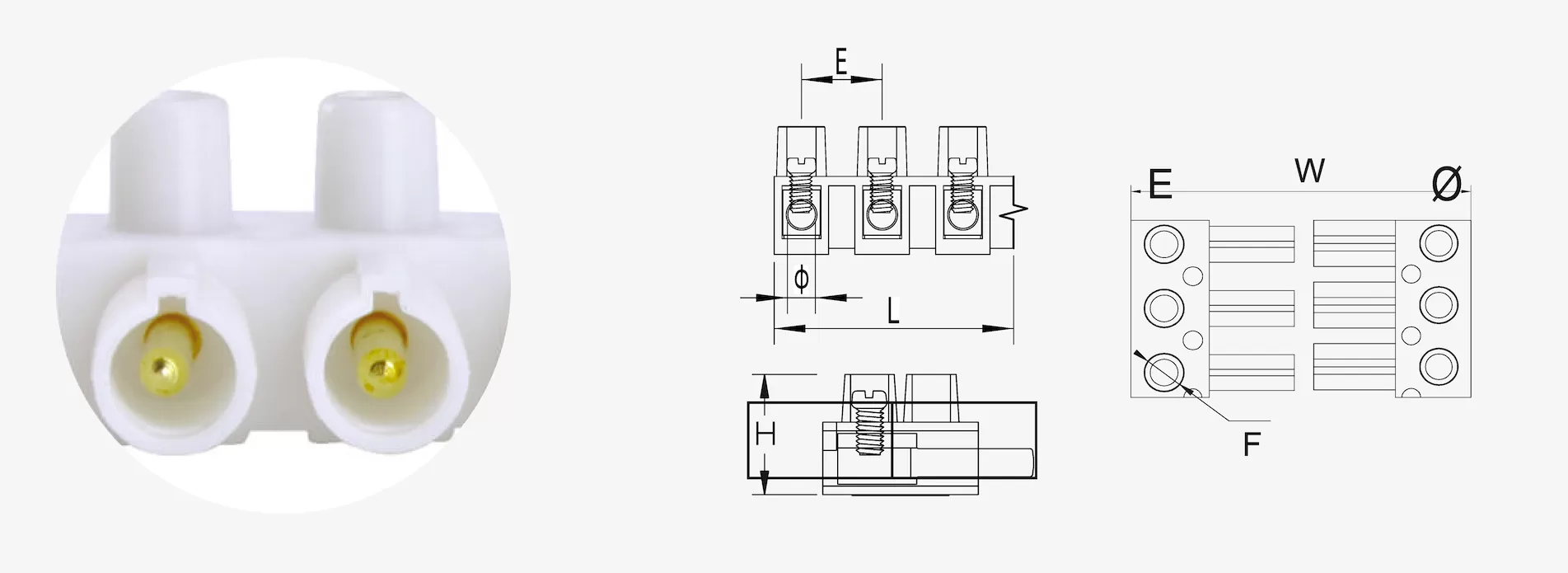

•Recessed screws and tubular contacts provide added safety and help prevent short circuits

• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact

• Integrated wire protectors prevent twisting and breakage of stranded wire during connection

• Modular 12-circuit design can be cut into smaller sections, or stacked end-to-end

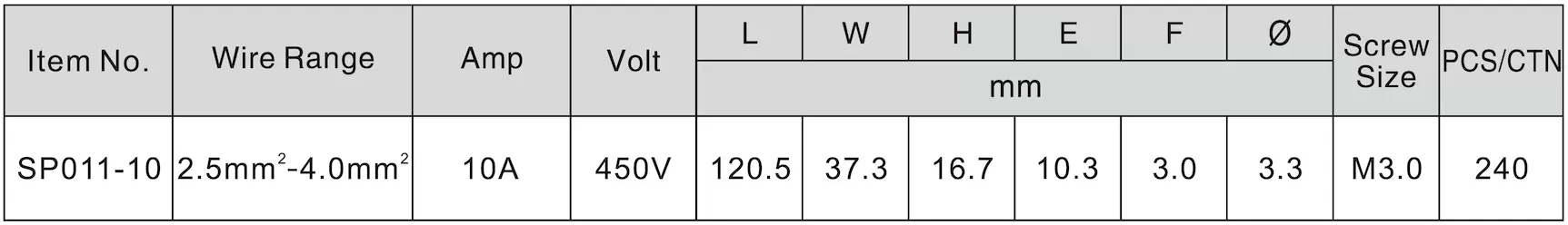

Product Attributes


CategoryFeed Through Terminal Block
StylePlug-in Connector Strips -PA6
ApplicationCable
Connection ModePush-Pull Connection
TypeComposite Electric Connector
Production ProcessInjection molding
Interface TypeAC/DC
Shell plastic material PA6: Polyamide6
Polyamide6 features

Good insulation, heat resistance, fire-resistance

Conductor MaterialBrass
Screw MaterialSteel, zinc plated
Rated Voltage (V)380V
Rated Current (A)10A
Glow Wire Test850℃
Standard ColorNatural white

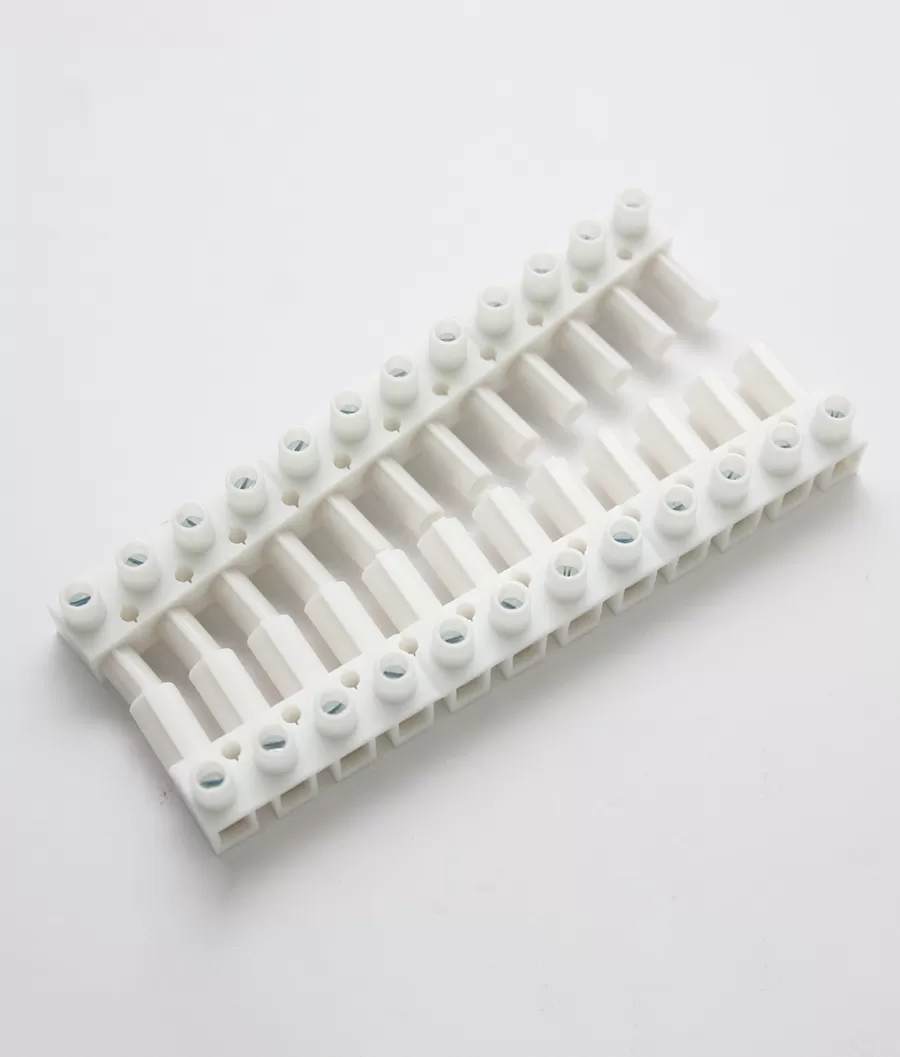

Male & Female Terminal Block /Plug-in Connector Strips -PA6 (Type 3)(pic1)

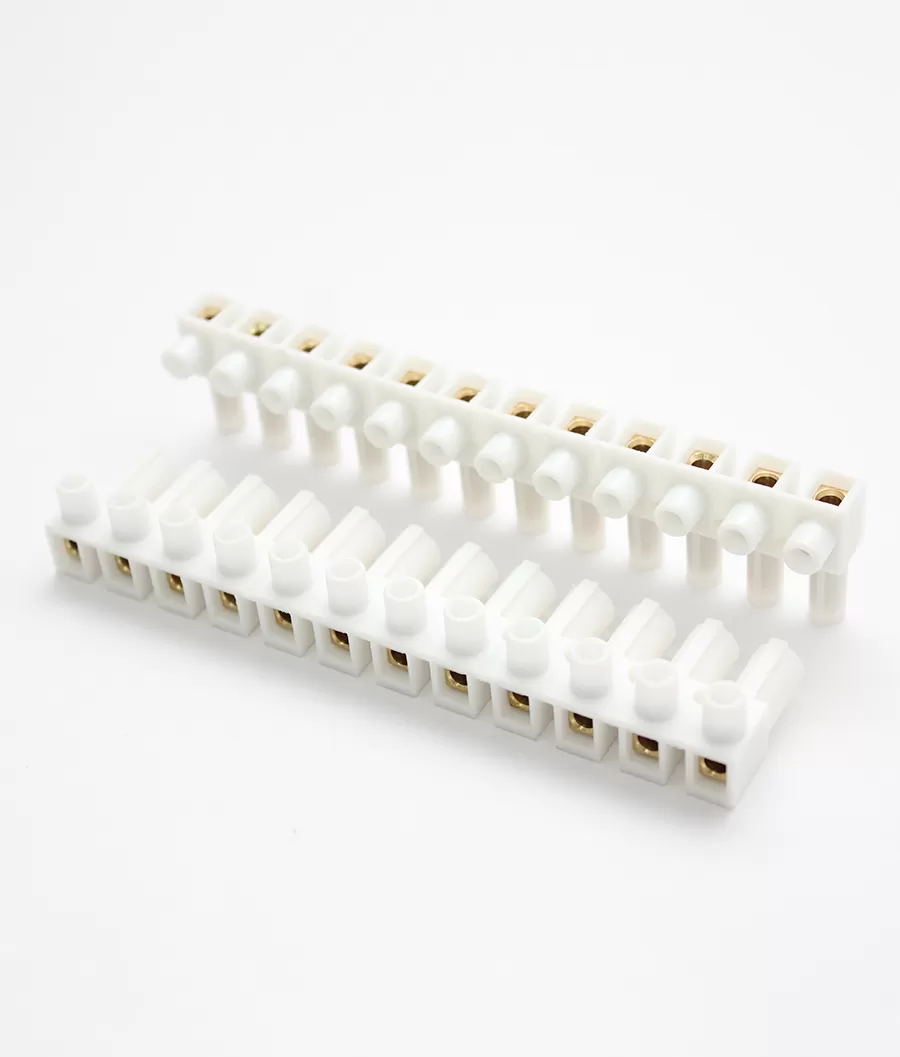

Male & Female Terminal Block /Plug-in Connector Strips -PA6 (Type 3)(pic2)



Supply Ability & Additional Information

Productivity40, 000, 000PCS/Year
TransportationOcean,Air
Place of OriginChina
Supply Ability40, 000, 000PCS/Year
PortNingbo Port
Payment TypeT/T
Incoterm FOB,EXW,CIP




Male & Female Terminal Block /Plug-in Connector Strips -PA6 (Type 3)(pic3)

Frequently Asked Questions

1. Can I ask for sample?

Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.

2. If I want get a products price list, where I can get it?

Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.

Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.

3. My product needs put our own logo on product or packing, what should I do?

If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

4. How many years Antong starts operate factory to produce terminal blocks?

Since 1989, AnTong has started factory operation, it’s almost 35 years.

5. What’s the process to develop a new product with Antong?

Step 1: Send picture/drawing to your service representative to confirm if we can produce it based on current technique we have.

Step 2: After make sure we can produce the item, we will quote mold fee MOQ of this new products.

Notes: If there’s an exist product with client, we we prefer client send sample to us due to provide more accurate price quotation and material identification.
