Lock Bar Terminal Block Type 1-PA
Antong’s equipotential bonding bar ensures safe potential equalization in electrical systems. Made of high-conductivity brass, it provides stable grounding for switchboards, control panels, and industrial installations.

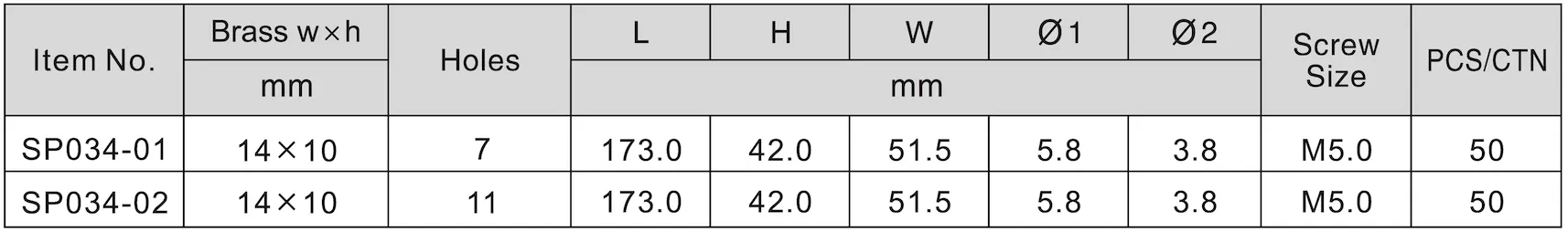

ItemNo
SP034.01~SP034.02Contact Material
BrassTermination Method
Screw DownWorking Temperature
-40℃ - 110℃Material
PANumber of Ways
7 or 11Inserts
BrassHousing
PAScrews
Steel, Zinc Plated
- Product Details

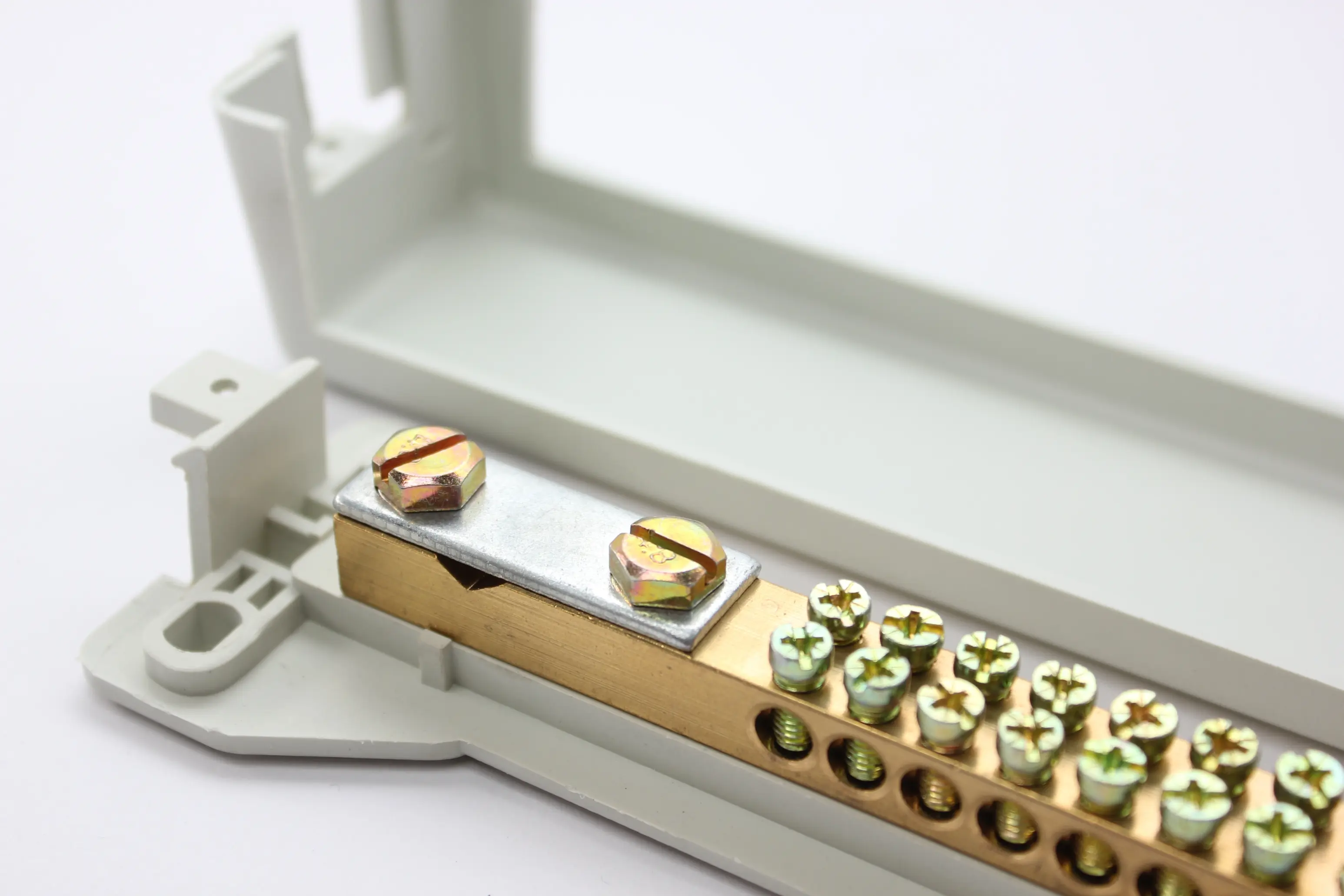

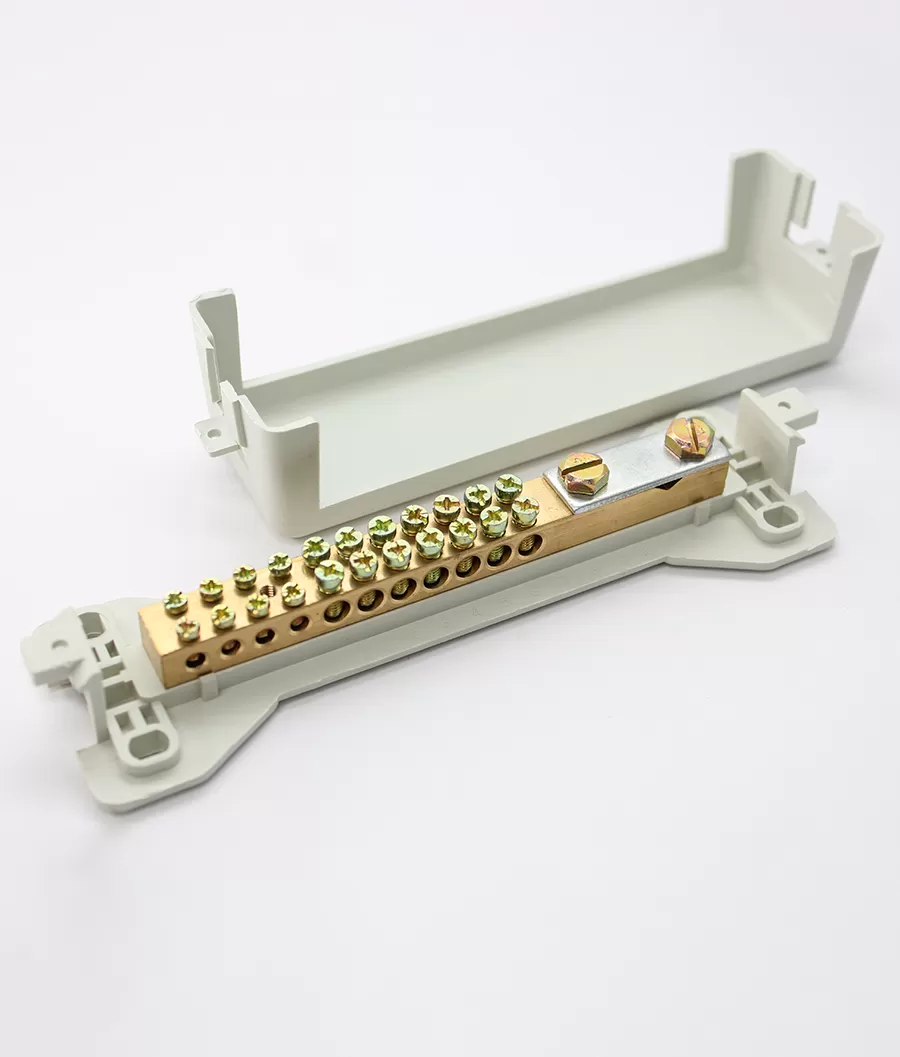

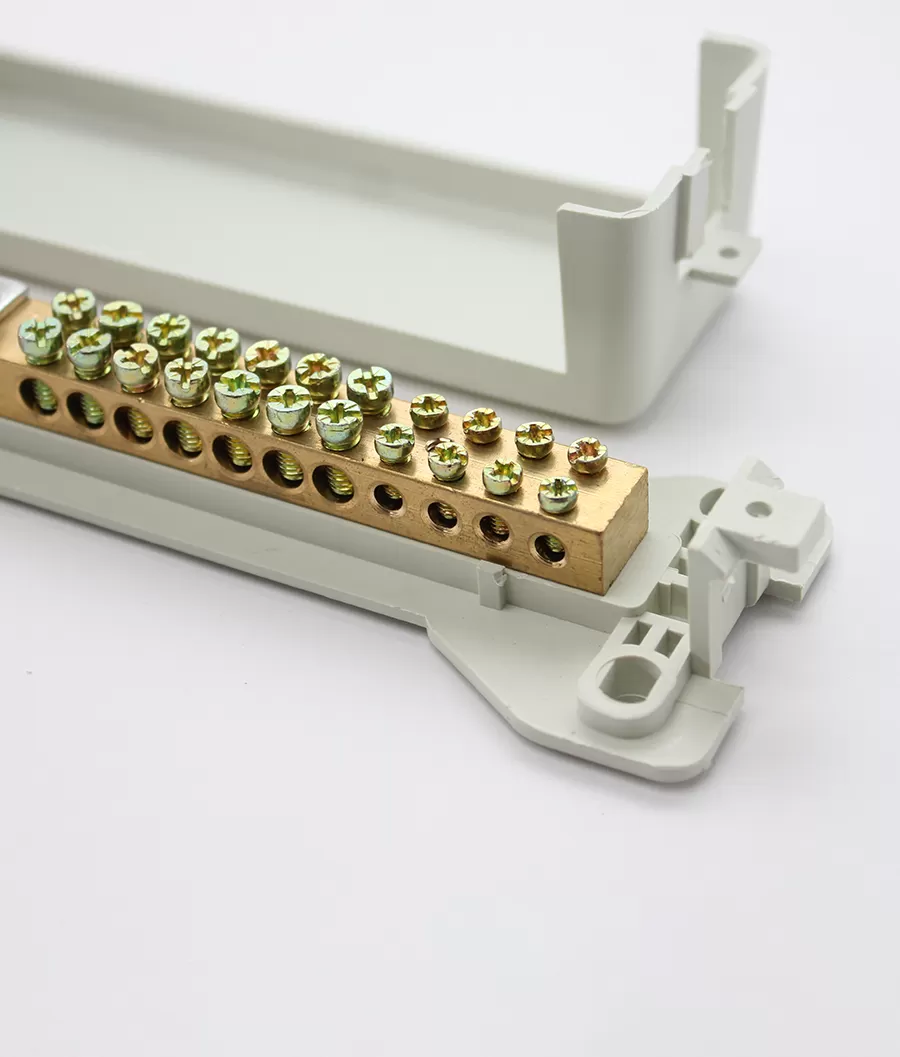

Lock Bar Terminal Block/ Equipotential bonding bar Type 1-PA
• High quality plastic cover ensures great mechanical strength and durability.
• Busbars with Din rail type insulator are designed for electrical and mechanical connection of neutral, protective and phase conductors.
• Equipotential busbar with metal foot for equipotential bonding and lightning protection equipotential bonding
Product Attributes
| Brand | Safetypass |
| Service | OEM,ODM available |
| Style/feature | Screw Terminal, Screw |
| Type | With cover |
| Insulator | Yes |
| Means of connection | Screw fixed |
| Cover plastic material | PA: Polyamide |
| PA features | Good insulation, heat resistance, fire-resistance |
| Shell option | PA |
| Working Temperature | -40℃ to 110℃ |
| Number of poles | Depends on size |
| Customized size | Accept |
| Contact rail | Brass |
| Material of the clamp | Brass |
| Surface of the contact rail | Nickel plated (depends on clients need) |
| Number of Contacts | 7,10 |
| Color | Gray |
| Tolerance | ± 0.1mm |
| Production Process | Injection molding |
| Design Structure | Fixed |
| Type of production | Manufacturing |
Supply Ability & Additional Information
| Productivity | 30, 000, 000PCS/Year |
| Transportation | Ocean,Air |
| Place of Origin | China |
| Supply Ability | 30, 000, 000PCS/Year |
| Port | Ningbo Port, Shanghai Port |
| Payment Type | T/T |
| Incoterm | FOB,EXW,CIP |
Frequently Asked Questions
1. Can I ask for sample?
Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.
2. If I want get a products price list, where I can get it?
Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.
Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.
3. My product needs put our own logo on product or packing, what should I do?
If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

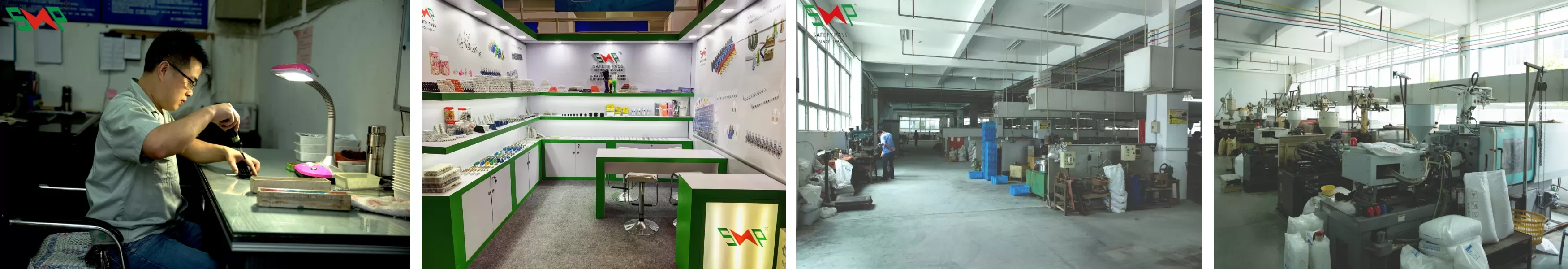

4. How many years Antong starts operate factory to produce terminal blocks?
Since 1989, AnTong has started factory operation, it’s almost 35 years.
5. What’s the process to develop a new product with Antong?
Step 1: Send picture/drawing to your service representative to confirm if we can produce it based on current technique we have.
Step 2: After make sure we can produce the item, we will quote mold fee MOQ of this new products.
Notes: If there’s an exist product with client, we we prefer client send sample to us due to provide more accurate price quotation and material identification.
