PRODUCT

INDUSTREY PRODUCT

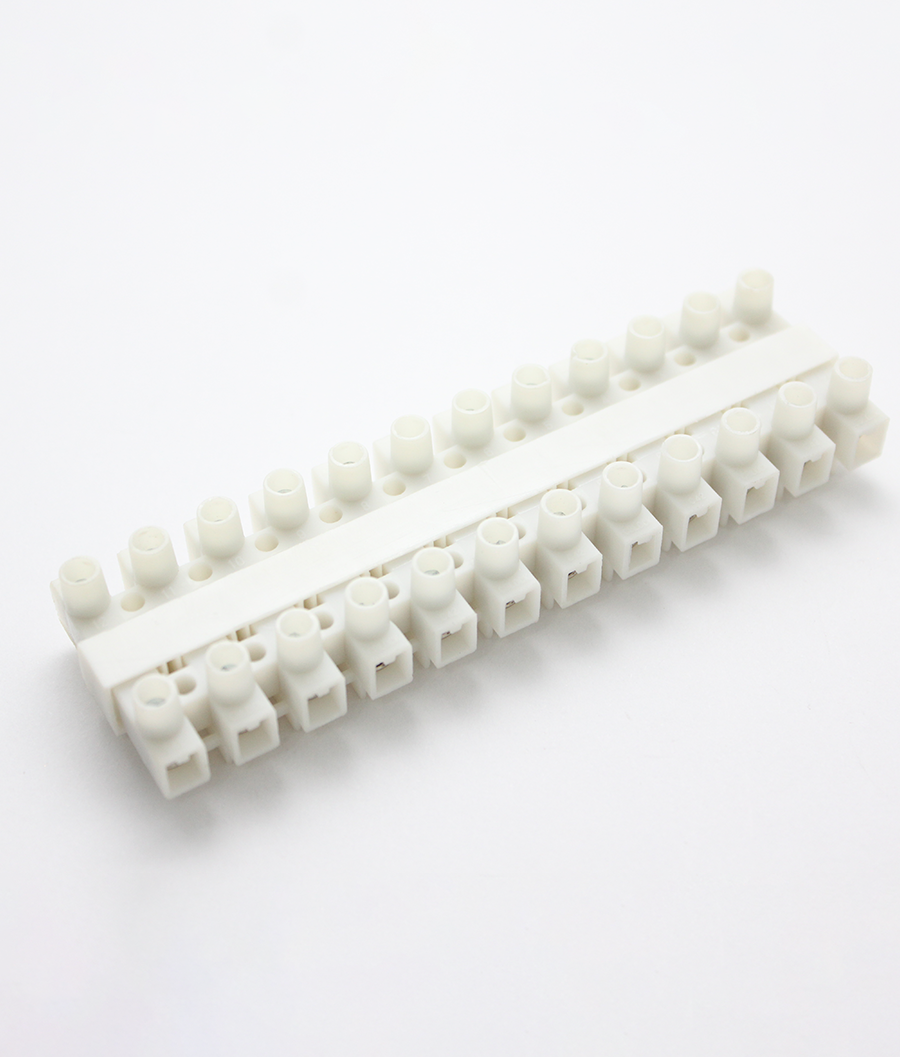

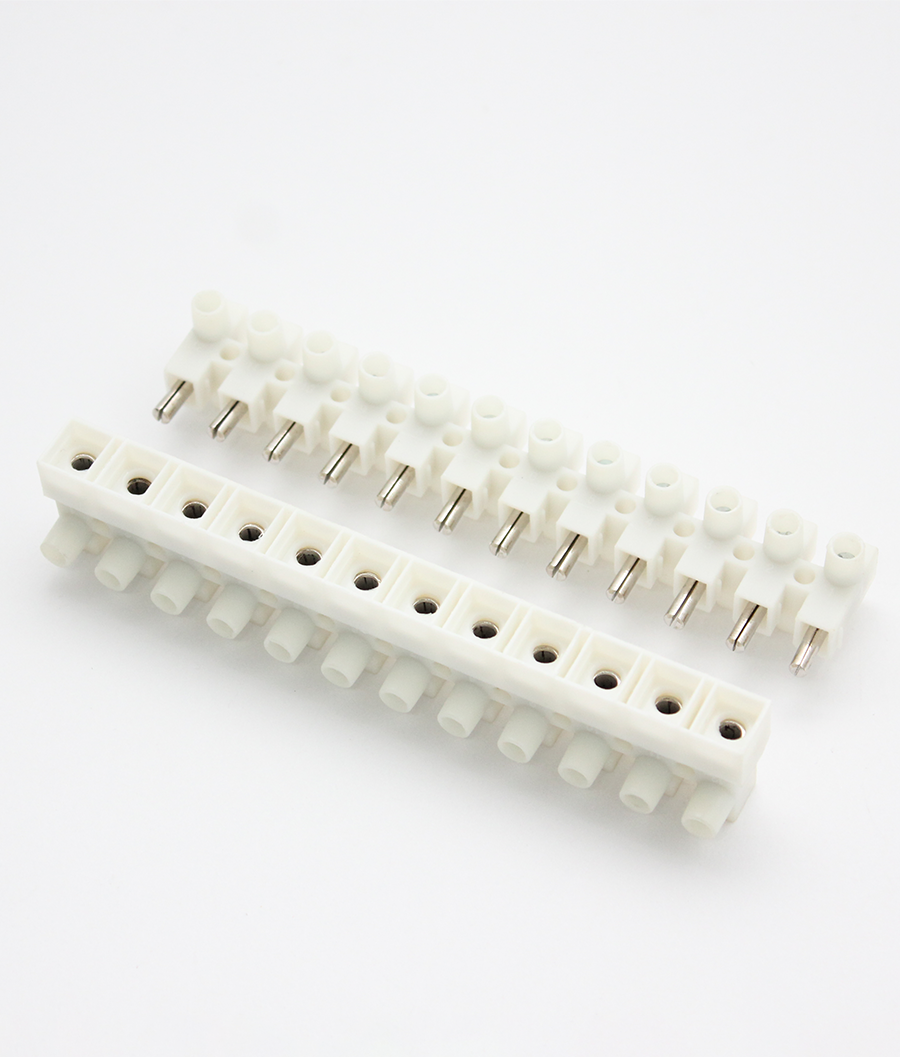

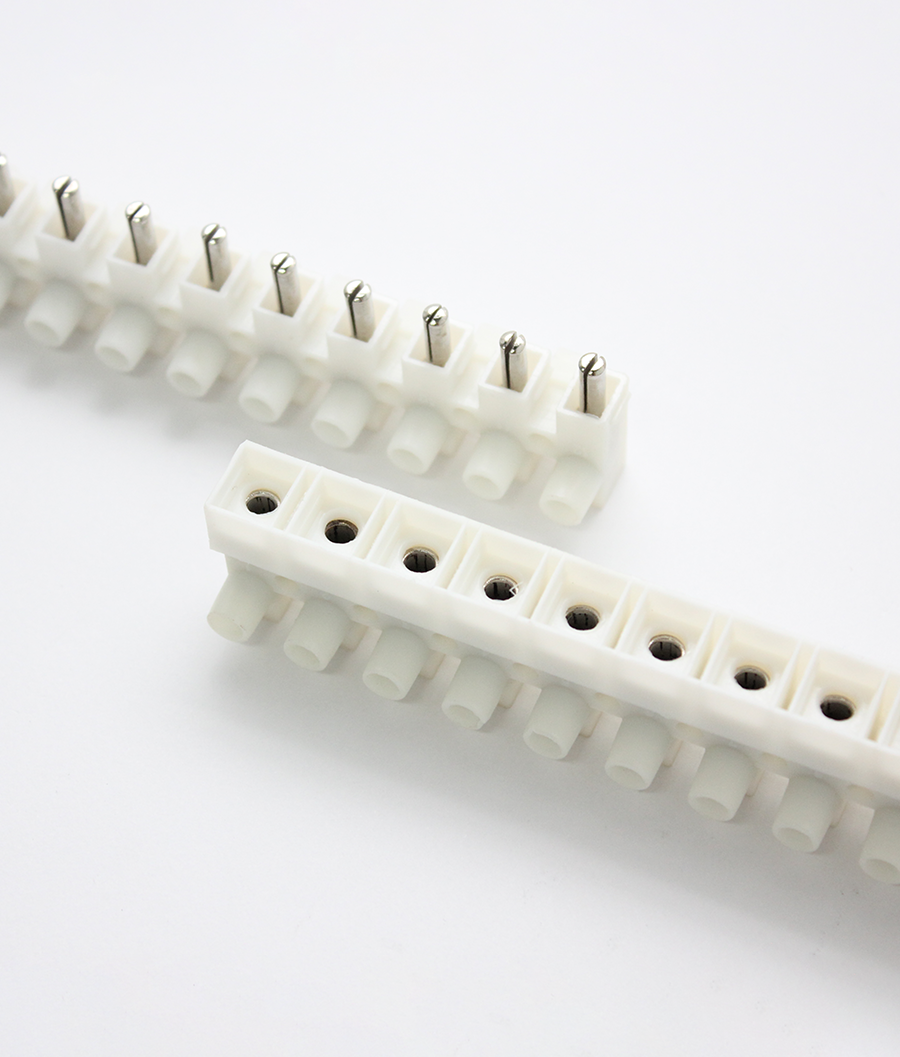

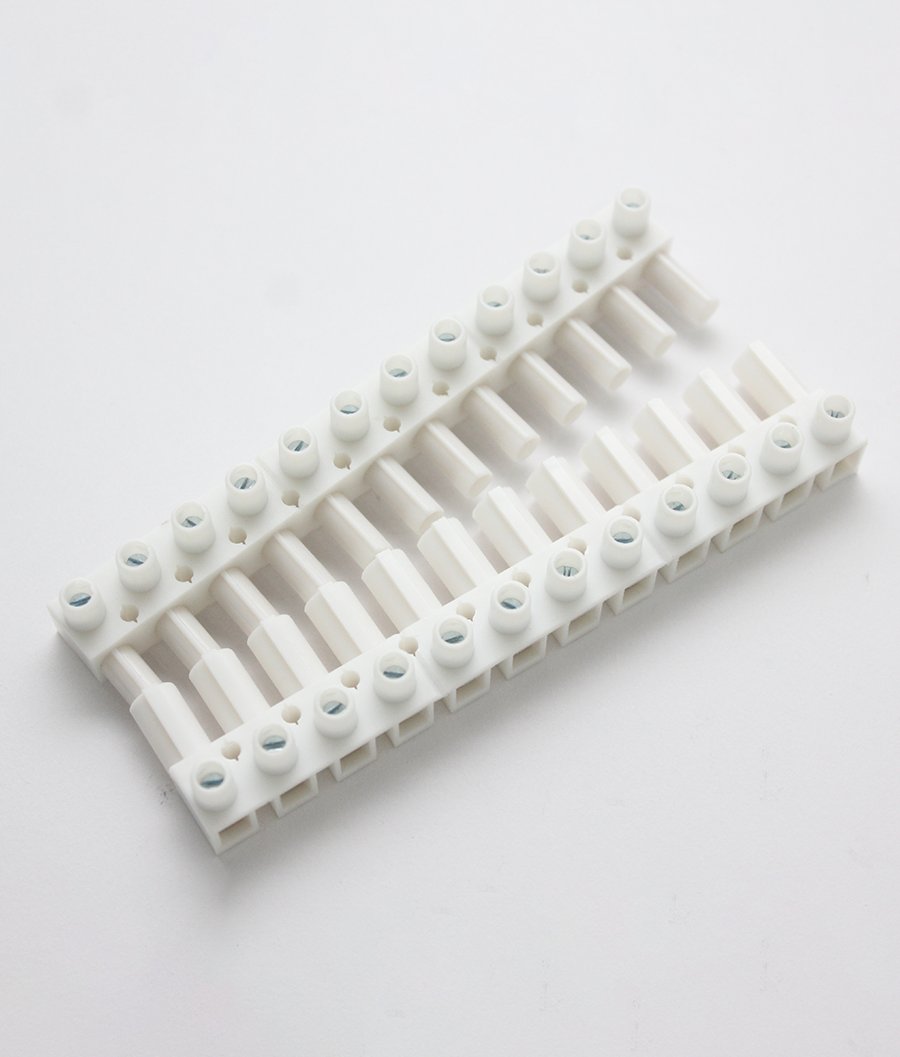

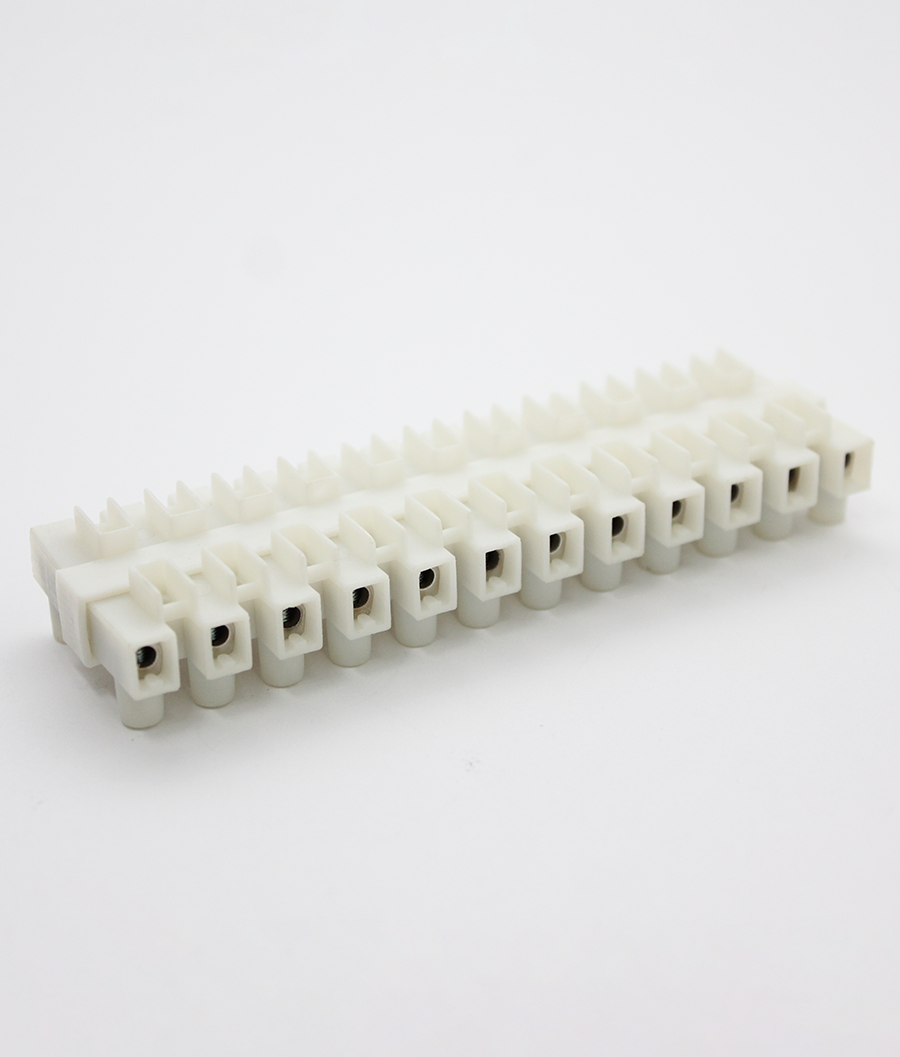

Male & Female Terminal Block /Plug-in Connector Strips -PA6 (Type 1)

Electric Male Female Pluggable Wire Connectors T Series Electric Male Female Connectors with 380V 10A Pluggable Wire Connector by PA6 shell, 12 Poles Multipolar Pluggable Wire Connectors.

  • Item No.

    SP010-01
  • Shell plastic material

    PA6
  • Glow Wire Test

    850℃
  • Color

    White

Electric Male Female Pluggable Wire Connector

•Recessed screws and tubular contacts provide added safety and help prevent short circuits

• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact

• Integrated wire protectors prevent twisting and breakage of stranded wire during connection

• Modular 12-circuit design can be cut into smaller sections, or stacked end-to-end

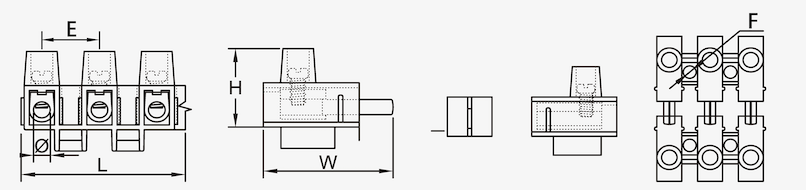

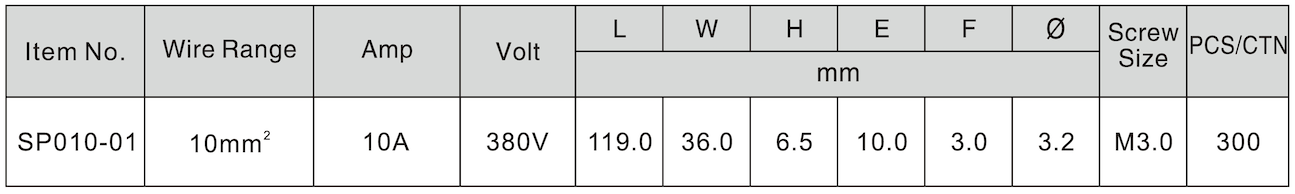

Specification
Category Feed Through Terminal Block
Style Plug-in Connector Strips -PA6
Application Cable
Connection Mode Push-Pull Connection
Type Composite Electric Connector
Shell plastic material  PA6: Polyamide6
Polyamide6 features

Good insulation, heat resistance, fire-resistance

Conductor Material Brass
Screw Material Steel, zinc plated
Rated Voltage (V) 380V
Rated Current (A) 10A
Glow Wire Test 850℃
Standard Color Natural white
Production Process Injection molding


Supply Ability & Additional Information

Productivity 40, 000, 000PCS/Year
Transportation Ocean,Air
Place of Origin China
Supply Ability 40, 000, 000PCS/Year
Port Ningbo, Shanghai Port
Payment Type T/T
Incoterm  FOB,EXW,CIP



Frequently Asked Questions

1. Can I ask for sample?

Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.

2. If I want get a products price list, where I can get it?

Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.

Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.

3. My product needs put our own logo on product or packing, what should I do?

If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

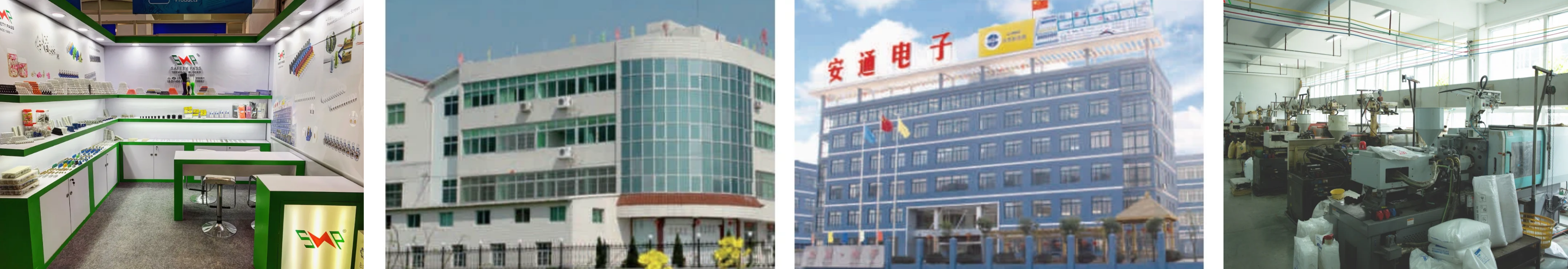

4. How many years Antong starts operate factory to produce terminal blocks?

Since 1989, AnTong has started factory operation, it’s almost 35 years.

5. What’s the process to develop a new product with Antong?

Step 1: Send picture/drawing to your service representative to confirm if we can produce it based on current technique we have.

Step 2: After make sure we can produce the item, we will quote mold fee MOQ of this new products.

Notes: If there’s an exist product with client, we we prefer client send sample to us due to provide more accurate price quotation and material identification.
