PRODUCT

INDUSTREY PRODUCT

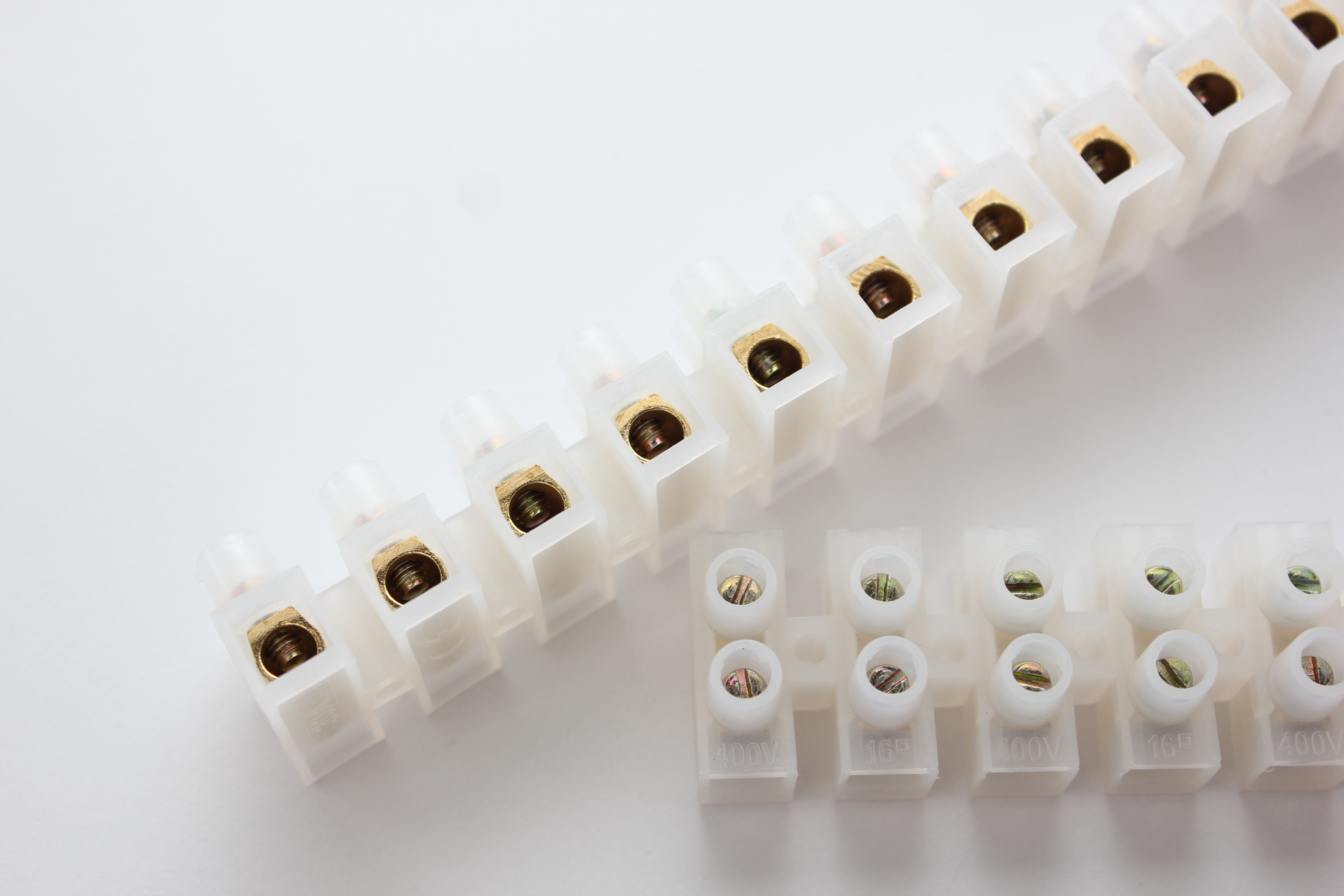

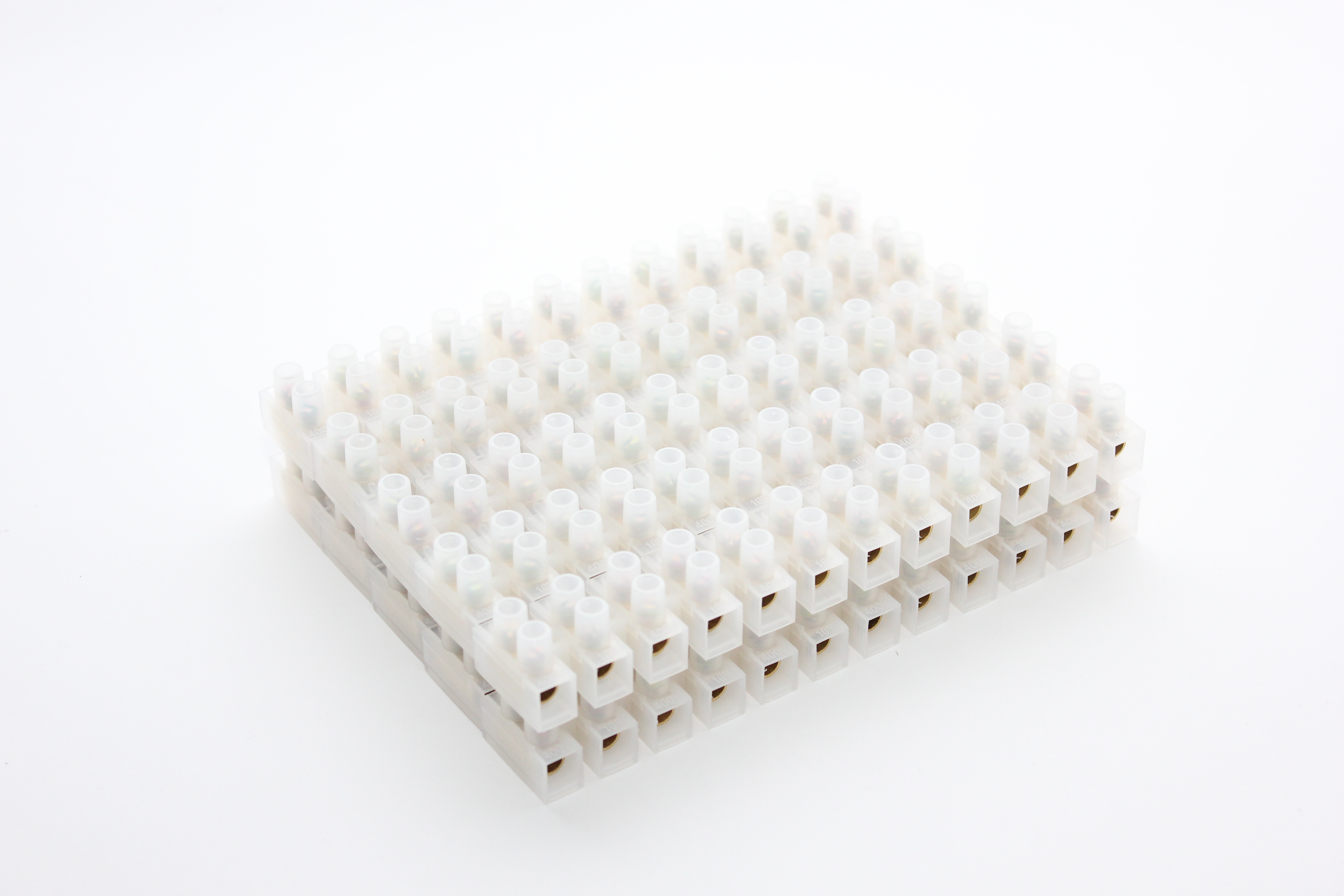

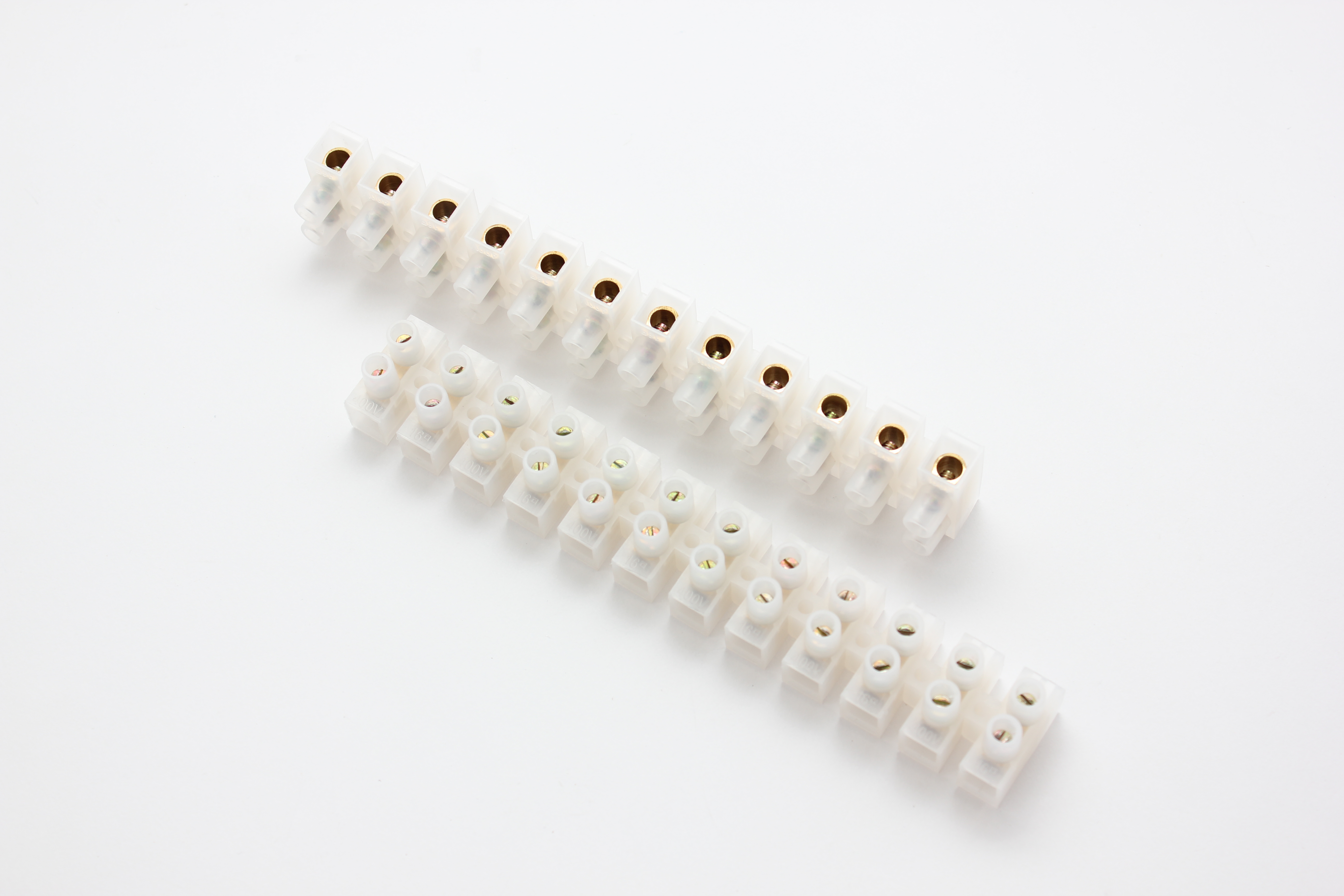

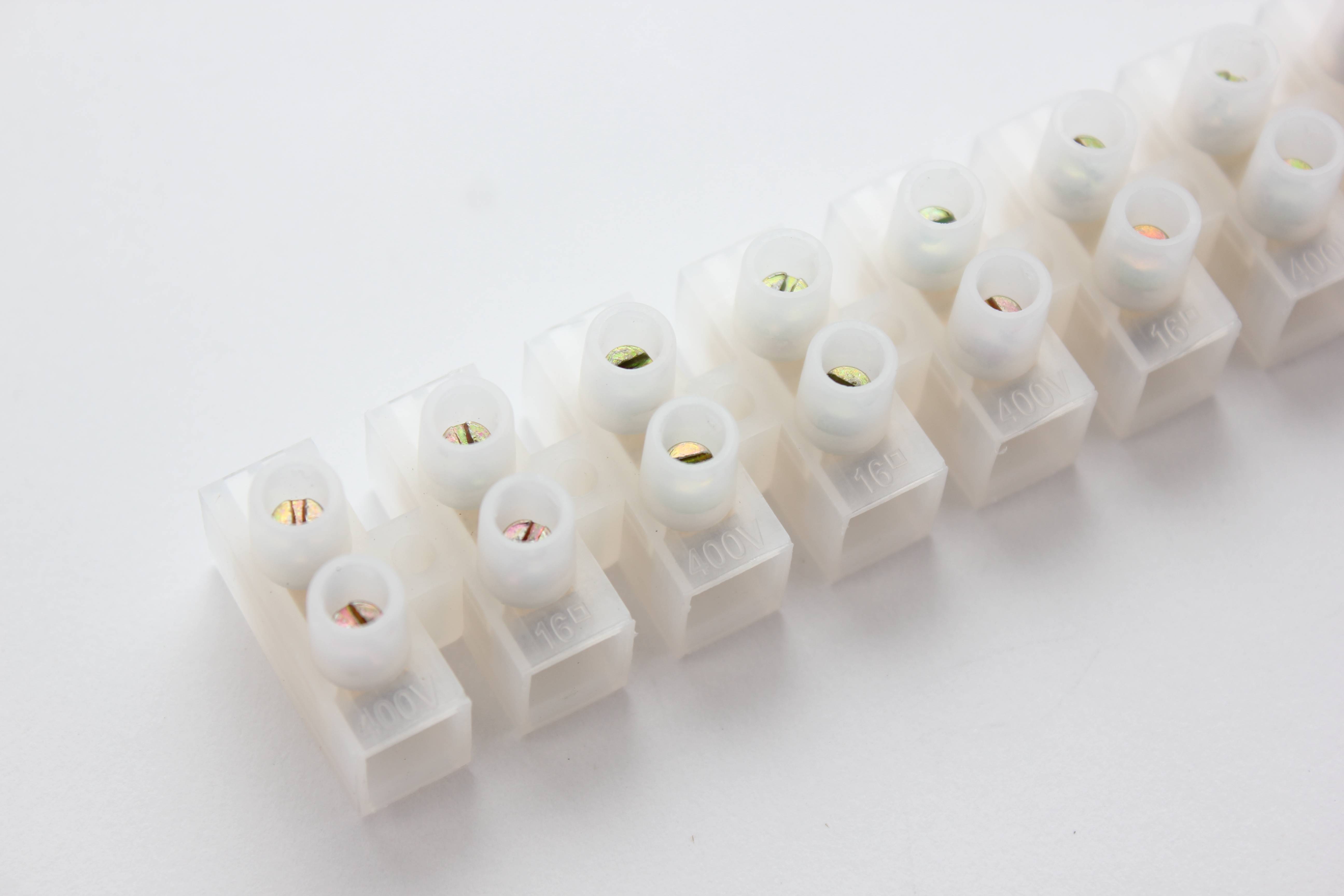

H Type Terminal Block-PE

Dual Row Electric Barrier Block 12-Position Terminal Strip-10Pcs/Pack

  • Item No

    SP001
  • Shell Plastic Material

    PE
  • Working Temperature

    -40℃ - 65℃
  • Standard Color

    Natural White, Black
  • Conductor

    Brass
  • Screws

    Steel, Zinc Plated

Terminal Block- H Type- PE

•Recessed screws and tubular contacts provide added safety and help prevent short circuits

• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact

• Integrated wire protectors prevent twisting and breakage of stranded wire during connection

• Modular 12-circuit design can be cut into smaller sections, or stacked end-to-end


Specification
Category Feed Through Terminal Block
Style  H Type
Shell plastic material  PE : Polyethylene
Polyethylene features

Good flexibility, extensibility and insulation. Inflammable

Conductor Material Brass
Screw Material Steel, zinc plated
Means of connection Screw fixed
Rated Voltage (V) 400V-450V
Rated Current (A) 3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A
Working Temperature -40℃ to 65℃
Color Natural white, black, red, green, yellow, blue
Production Process Injection molding


Application

Supply Ability & Additional Information

Productivity 40, 000, 000PCS/Year
Transportation Ocean,Air
Place of Origin China
Supply Ability 40, 000, 000PCS/Year
Port Ningbo Port
Payment Type T/T
Incoterm  FOB,EXW,CIP



Frequently Asked Questions

1. Can I ask for sample?

Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.

2. If I want get a products price list, where I can get it?

Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.

Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.

3. My product needs put our own logo on product or packing, what should I do?

If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

4. How many years Antong starts operate factory to produce terminal blocks?

Since 1989, AnTong has started factory operation, it’s almost 35 years.
