Terminal Distribution Box Rail Type
Antong’s distribution box offers reliable electrical power control and circuit protection for residential, commercial, and industrial systems. Designed for easy installation, our boxes support secure wiring and safe power management.
ItemNo
SP037/UKKContact Material
BrassTermination Method
Screw InWorking Temperature
℃Material
PC, PLNumber of Ways
Depends on sizeInserts
BrassHousing
PC,PLScrews
- Product Details

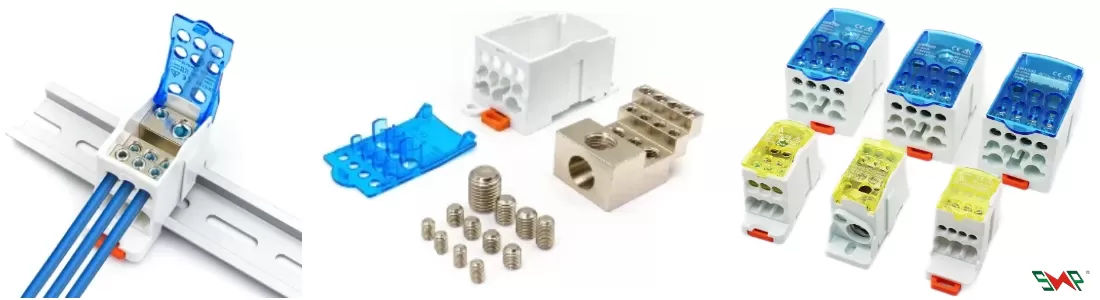

Terminal Distribution Box Rail Type/ Unipolar Junction Box
• Equipped with brass connectors, this terminal junction box ensures stable and reliable connections, enhancing overall work performance.
• The transparent cover can see if the cable is connected reliably.
• Feature:junction box,wire branch box,meet all kinds of cable branches to improve work efficiency.
Product Attributes

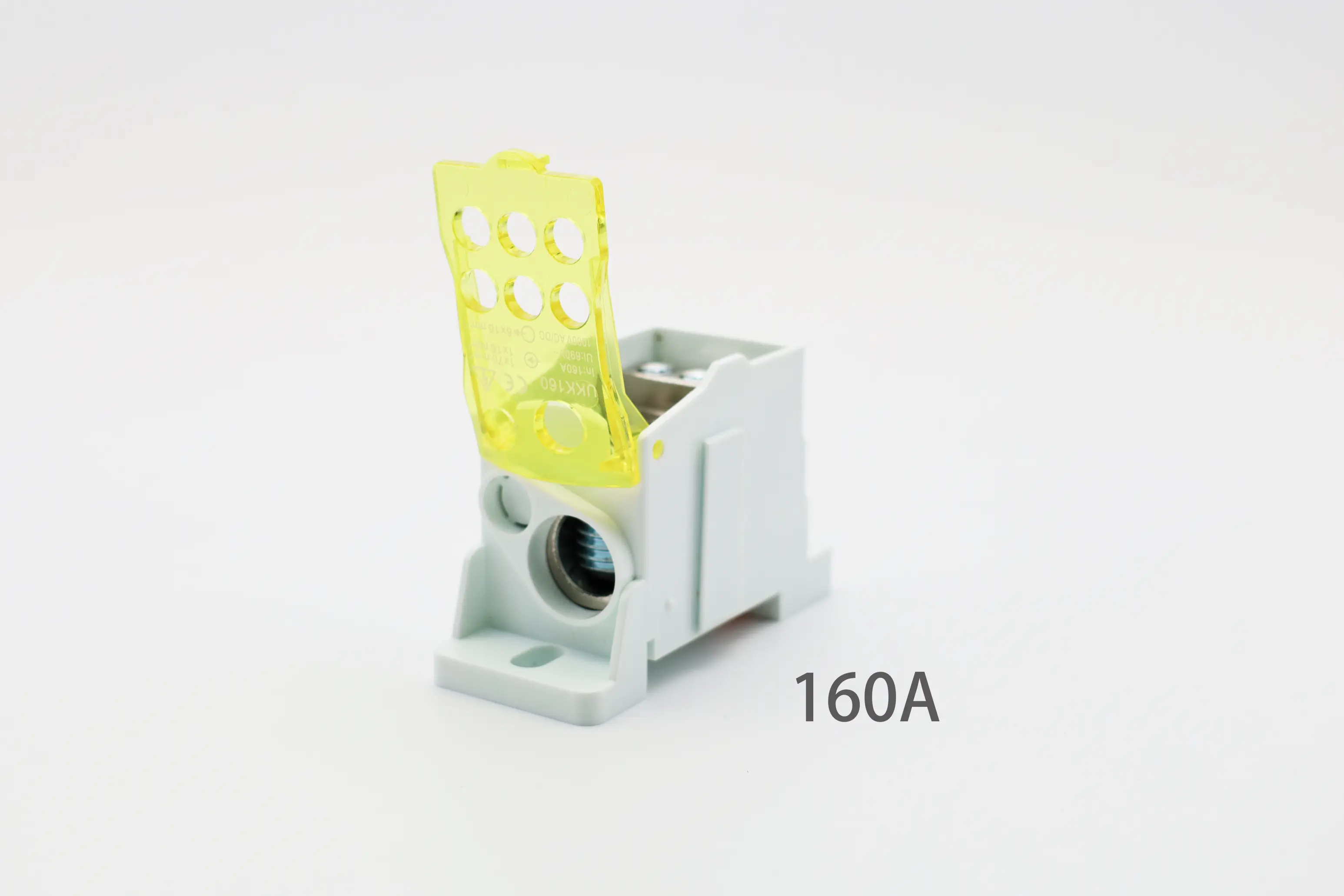

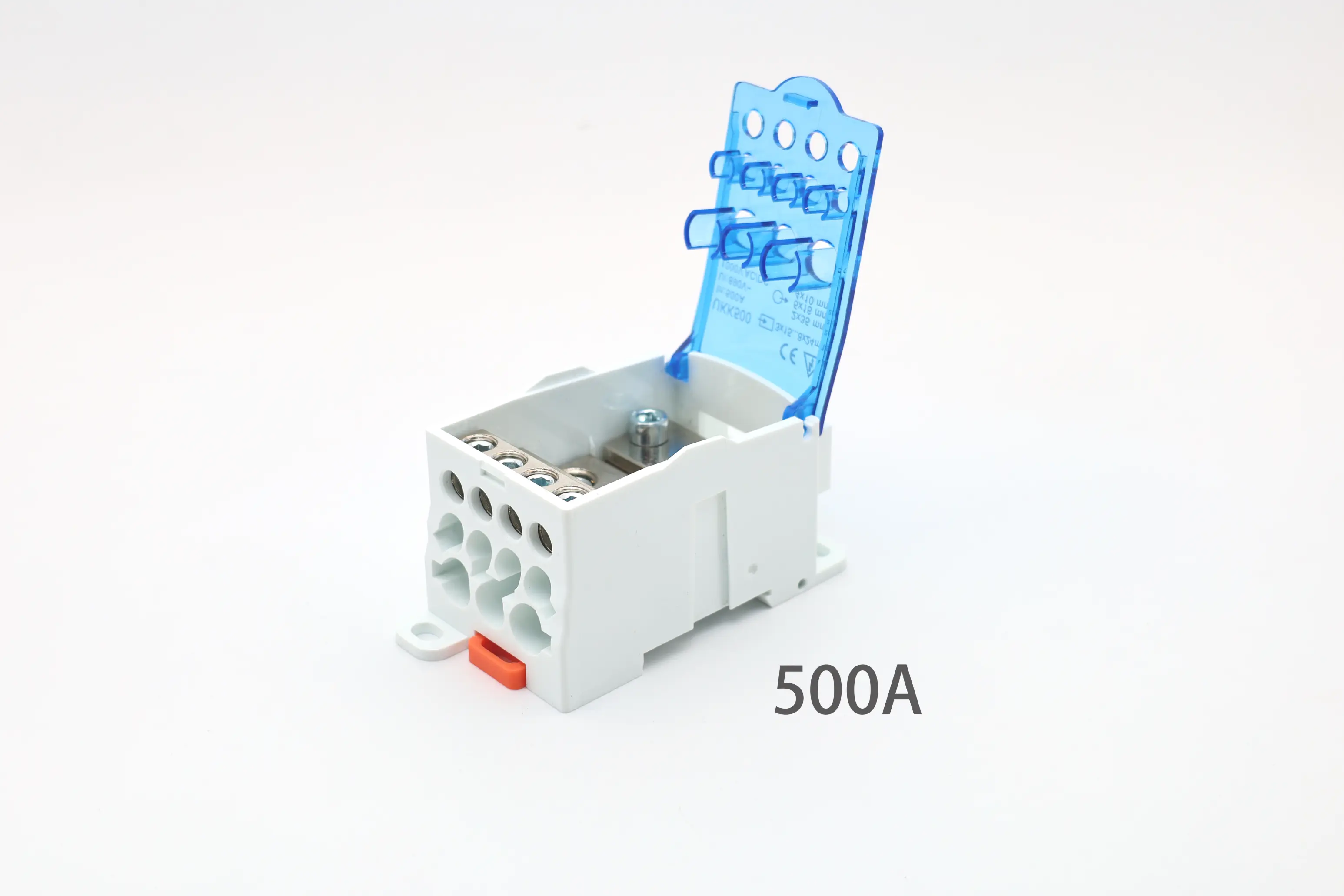

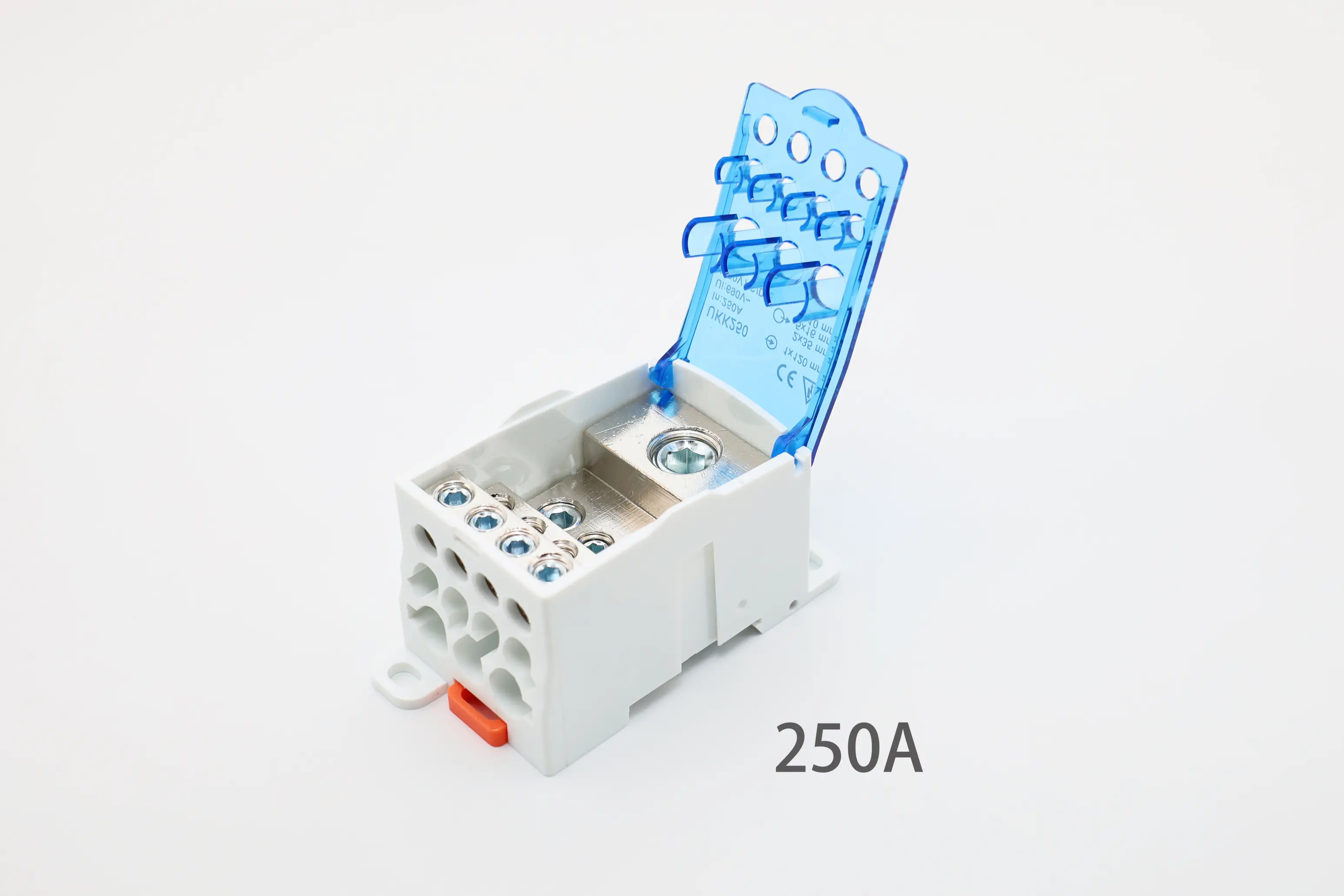

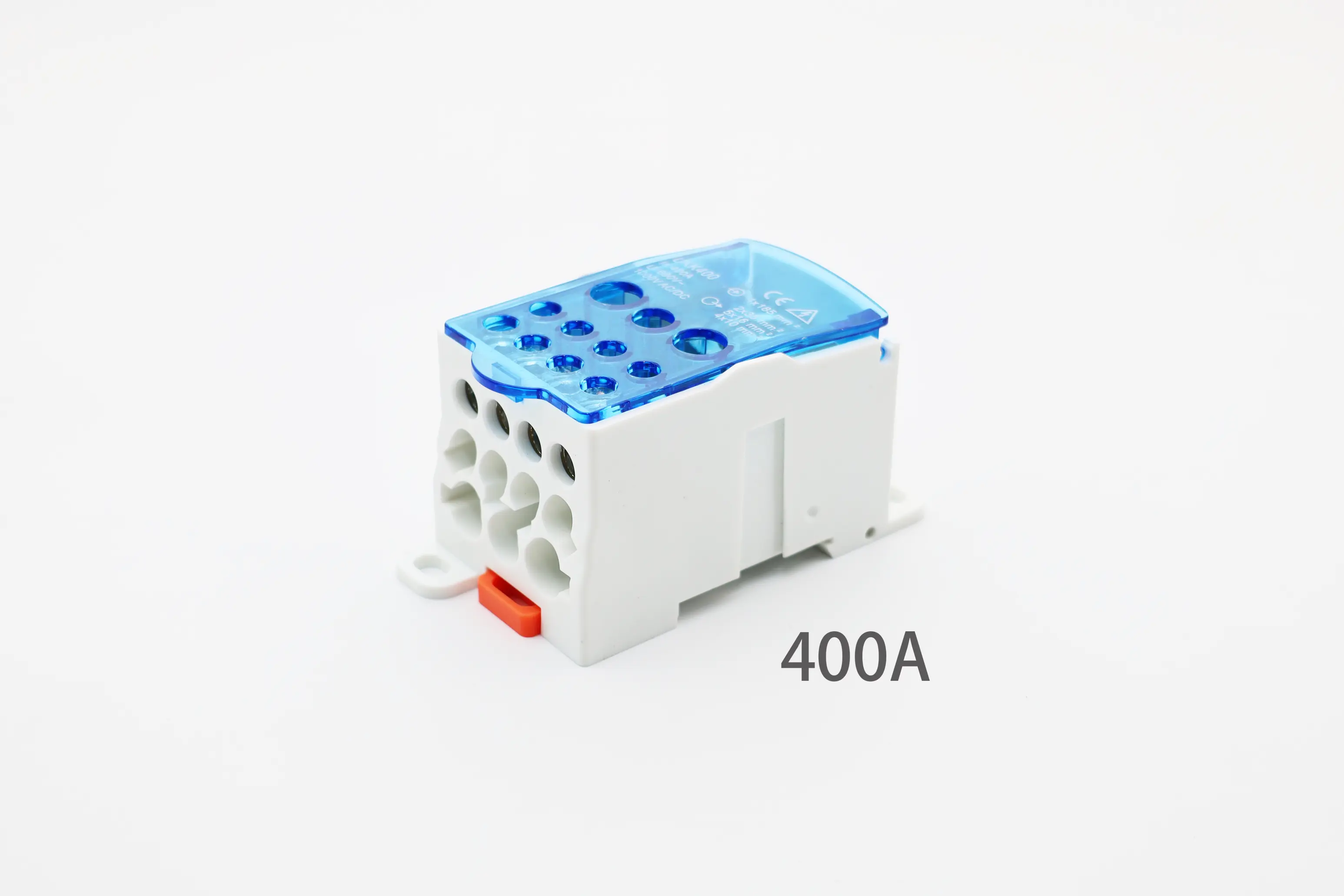

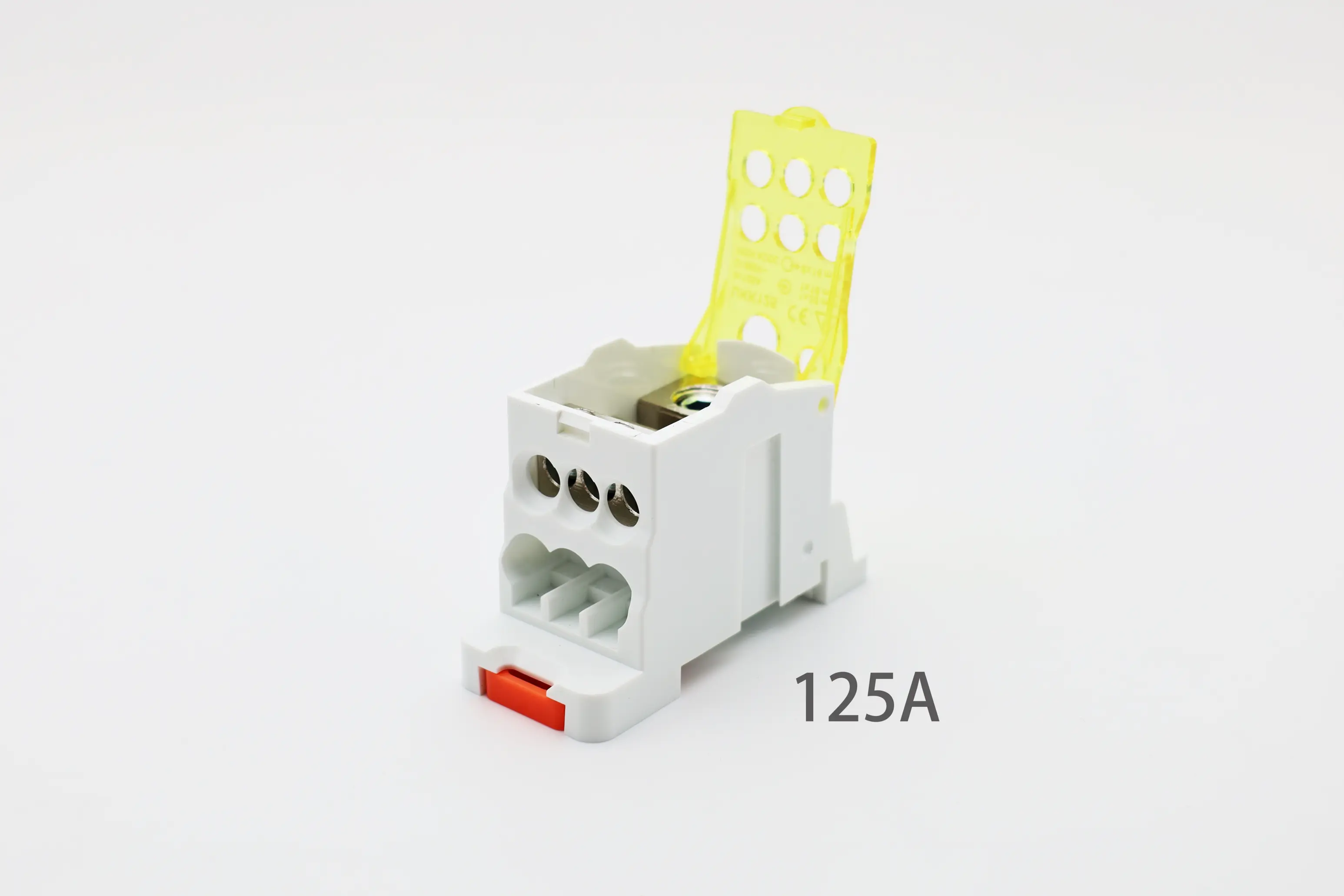

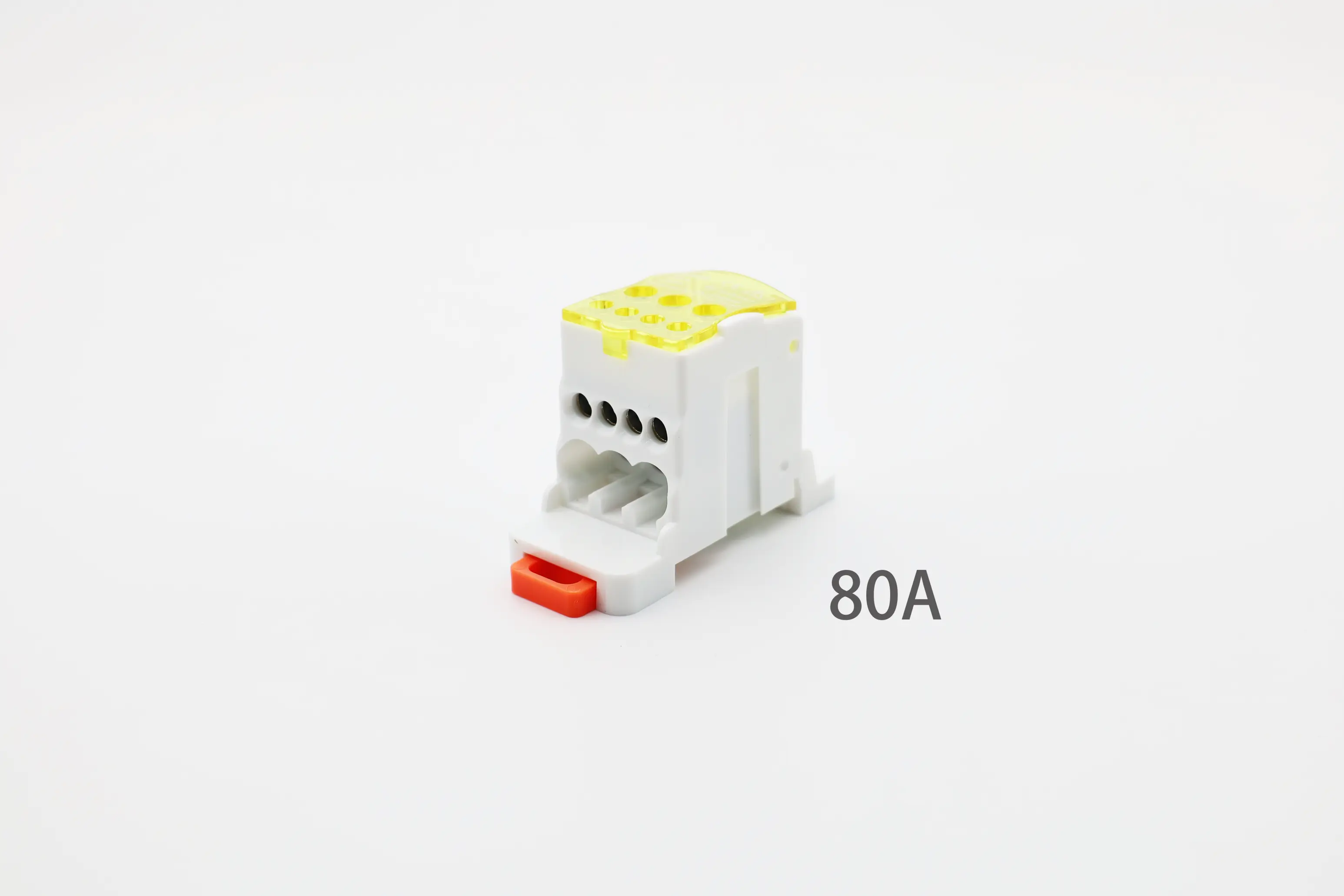

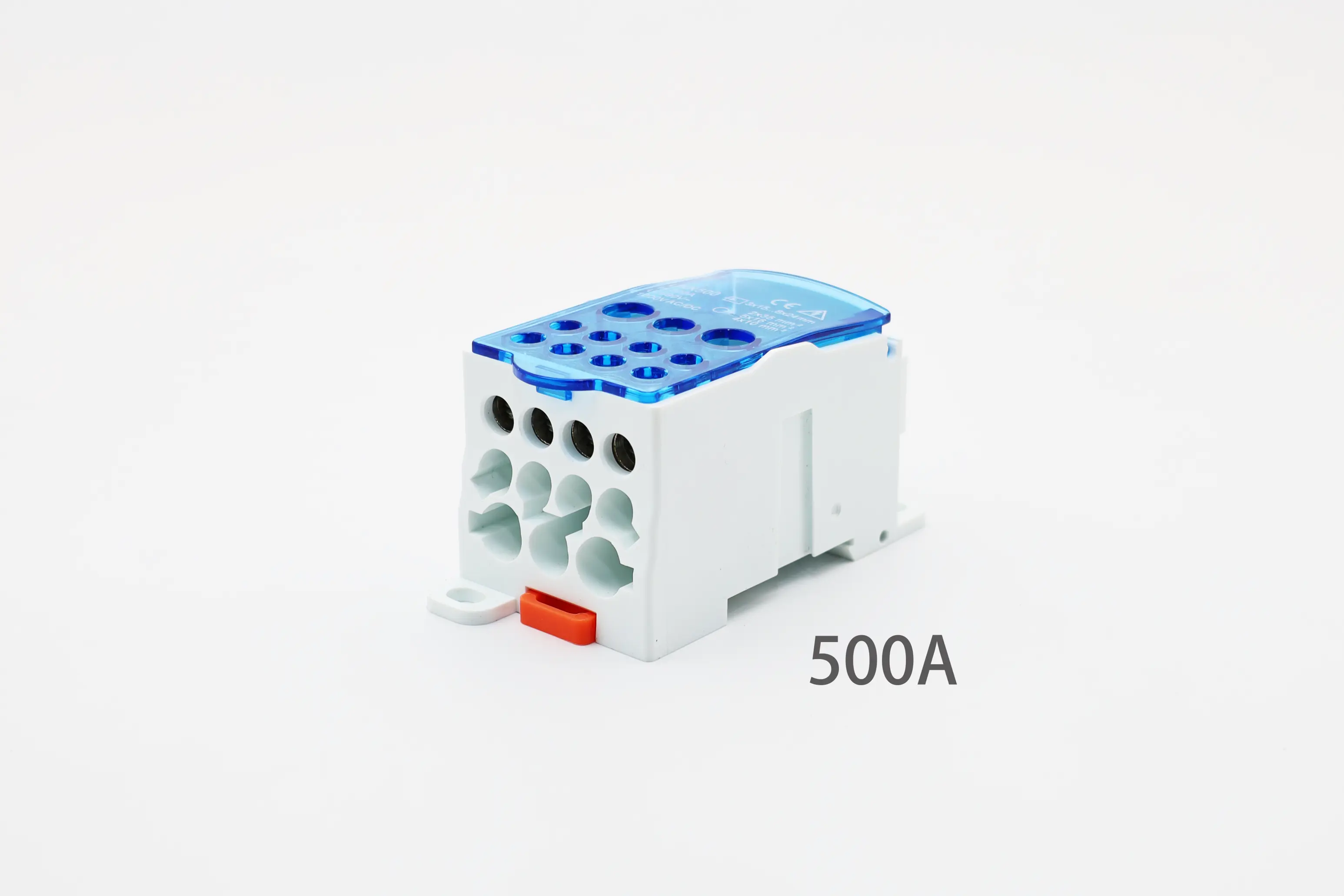

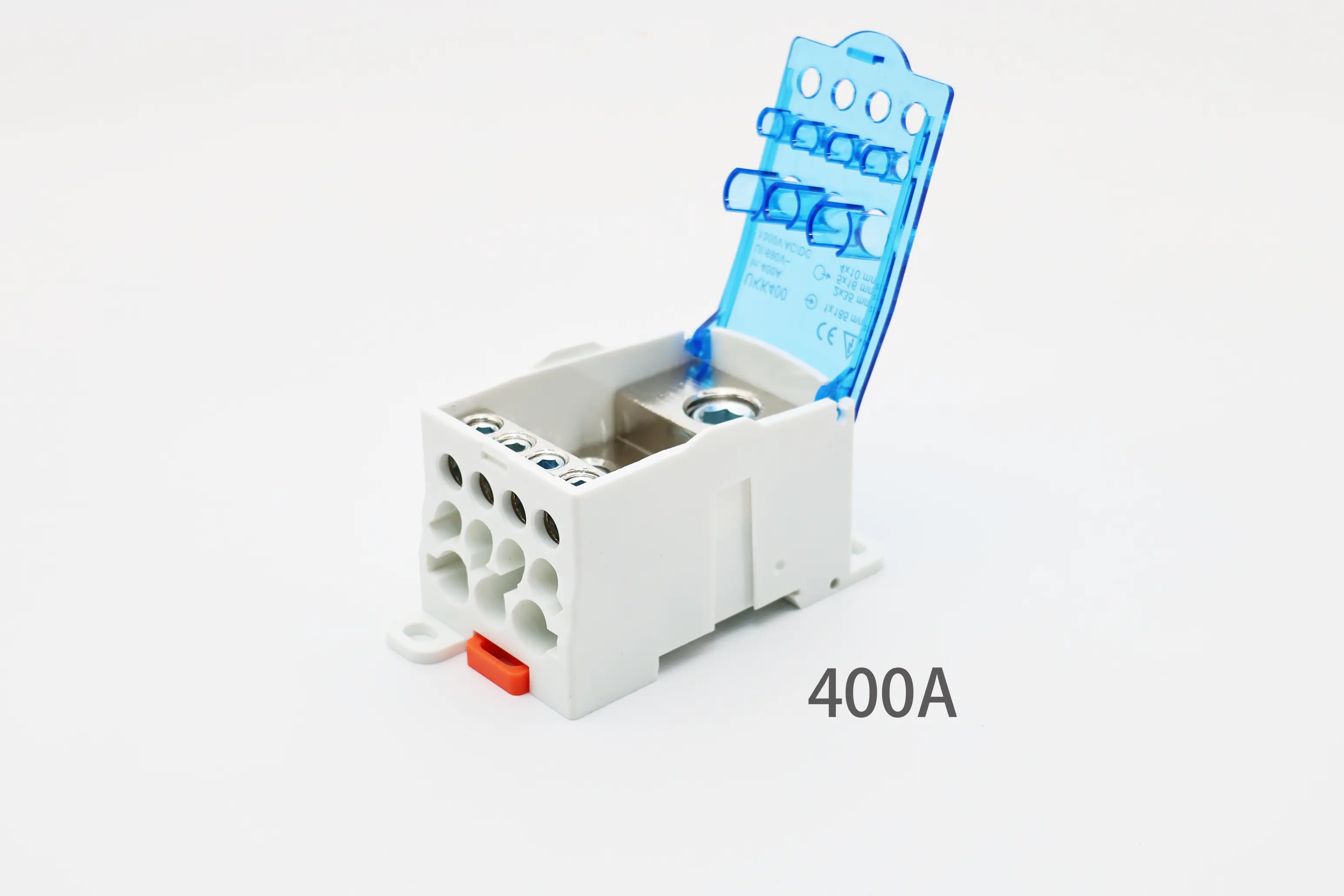

| Item | 80A | 125A | 160A | 250A | 400A | 500A |
| Size (mm) | 66*27*46 | 77*29*46 | 77*29*46 | 96*46*50 | 96*46*50 | 96*46*50 |
| Voltage | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Input | ||||||
| Connection Points | 1 | 1 | 1 | 1 | 1 | 1 |
| Torque (N-m) | 3.5 | 8.5 | 8.5 | 19 | 25 | 10 |
| Diameter (mm) | 6.8 | 10 | 12.3 | 15 | 19 | / |
| Metric wire (mm2) | 6～16 | 10～35 | 10～70 | 35～120 | 95～185 | 8*24 |
| Imperial wire (AWG) | 16~4 | 8~1/0 | 8~3/0 | 6~250 | 3/0~400 | / |
| Output | ||||||
| Connection Points | 4 | 6 | 6 | 2 | 2 | 2 |
| Torque (N-m) | 1.2 | 3.5 | 3.5 | 4.4 | 4.4 | 4.4 |
| Diameter (mm) | 4.5 | 6.8 | 6.8 | 9 | 9 | 9 |
| Metric wire (mm2) | 2.5～6 | 2.5～16 | 2.5～16 | 6～35 | 6～35 | 6～35 |
| Imperial wire (AWG) | 16～8 | 14～4 | 14～4 | 14～1 | 14～1 | 8～1 |
• PA66 flame retardent shell
• High temperature resistance, corrosion resistance, good insulation
• Excellent copper conductor
• Brass conductor :high conductivity, low temperature rise and sufficient current
Frequently Asked Questions
1. Can I ask for sample?
Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.
2. If I want get a products price list, where I can get it?
Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.
Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.
3. My product needs put our own logo on product or packing, what should I do?
If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

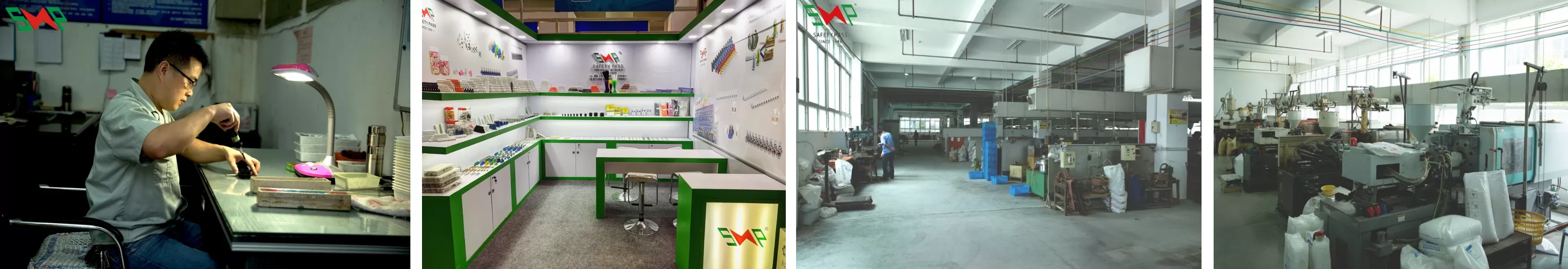

4. How many years Antong starts operate factory to produce terminal blocks?
Since 1989, AnTong has started factory operation, it’s almost 35 years.
5. What’s the process to develop a new product with Antong?
Step 1: Send picture/drawing to your service representative to confirm if we can produce it based on current technique we have.
Step 2: After make sure we can produce the item, we will quote mold fee MOQ of this new products.
Notes: If there’s an exist product with client, we we prefer client send sample to us due to provide more accurate price quotation and material identification.
