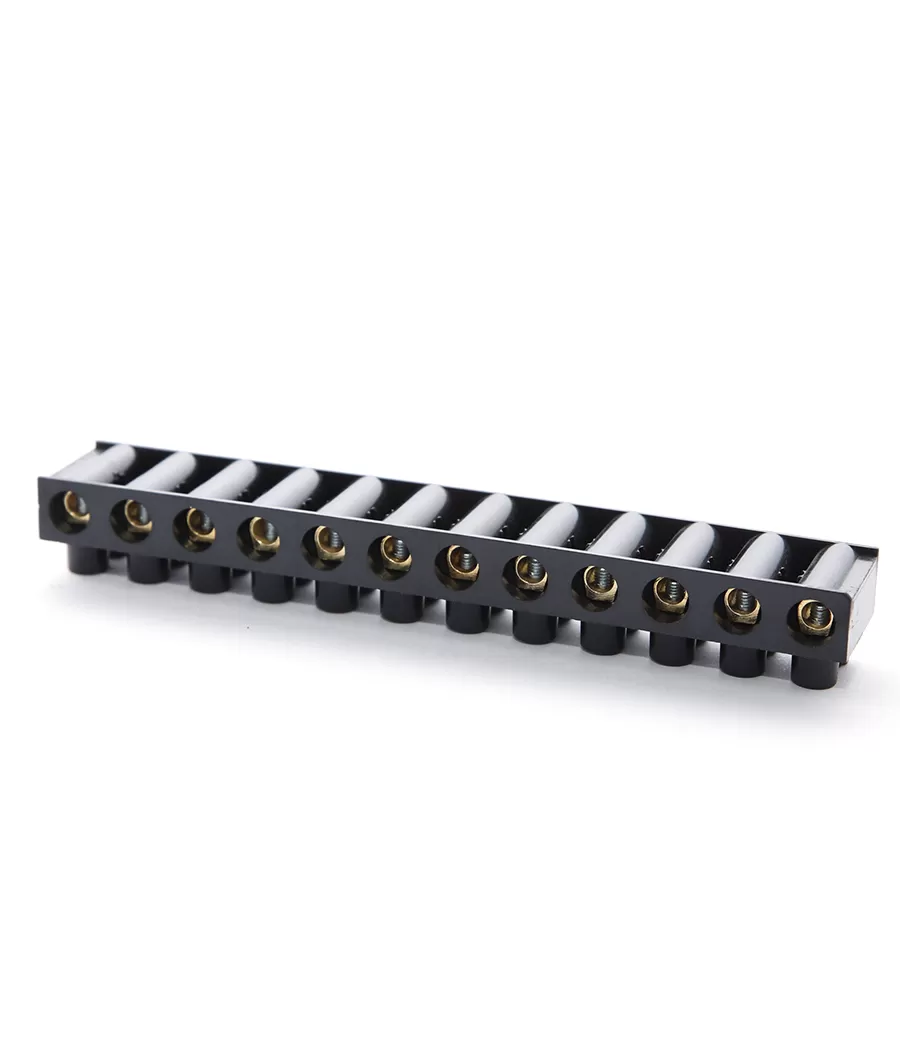

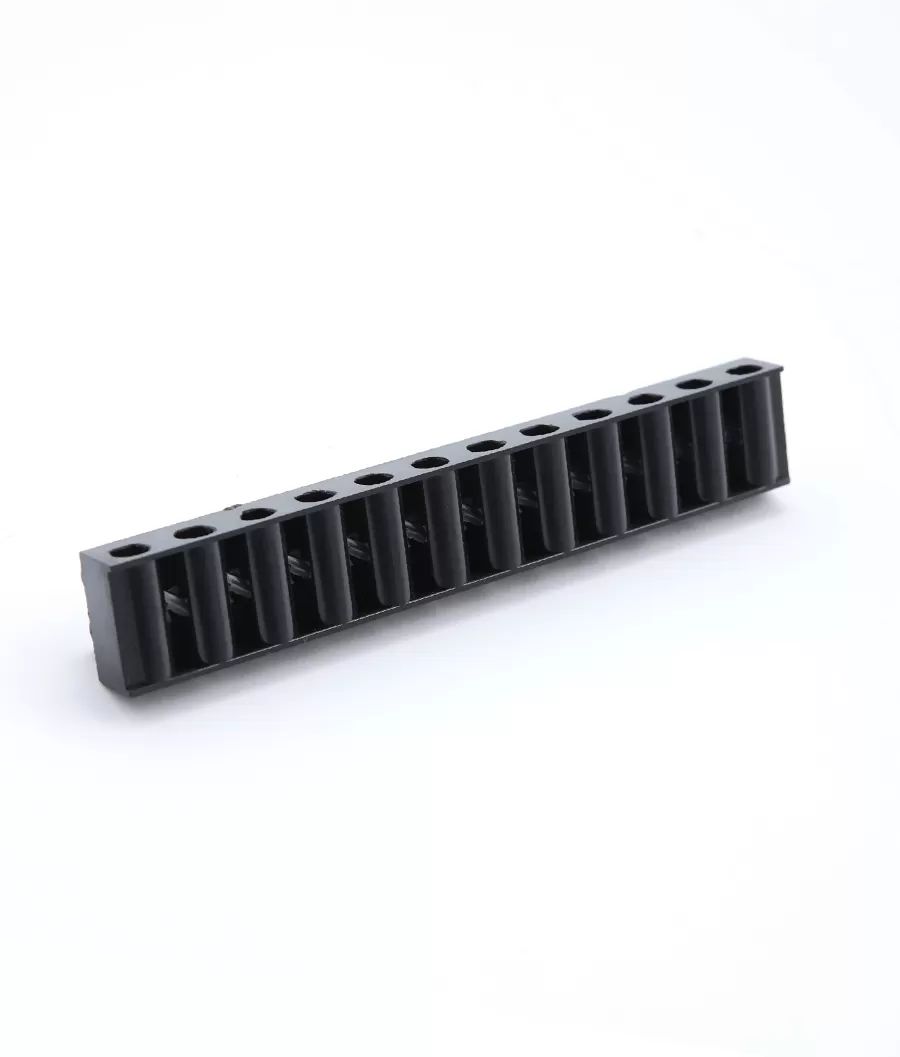

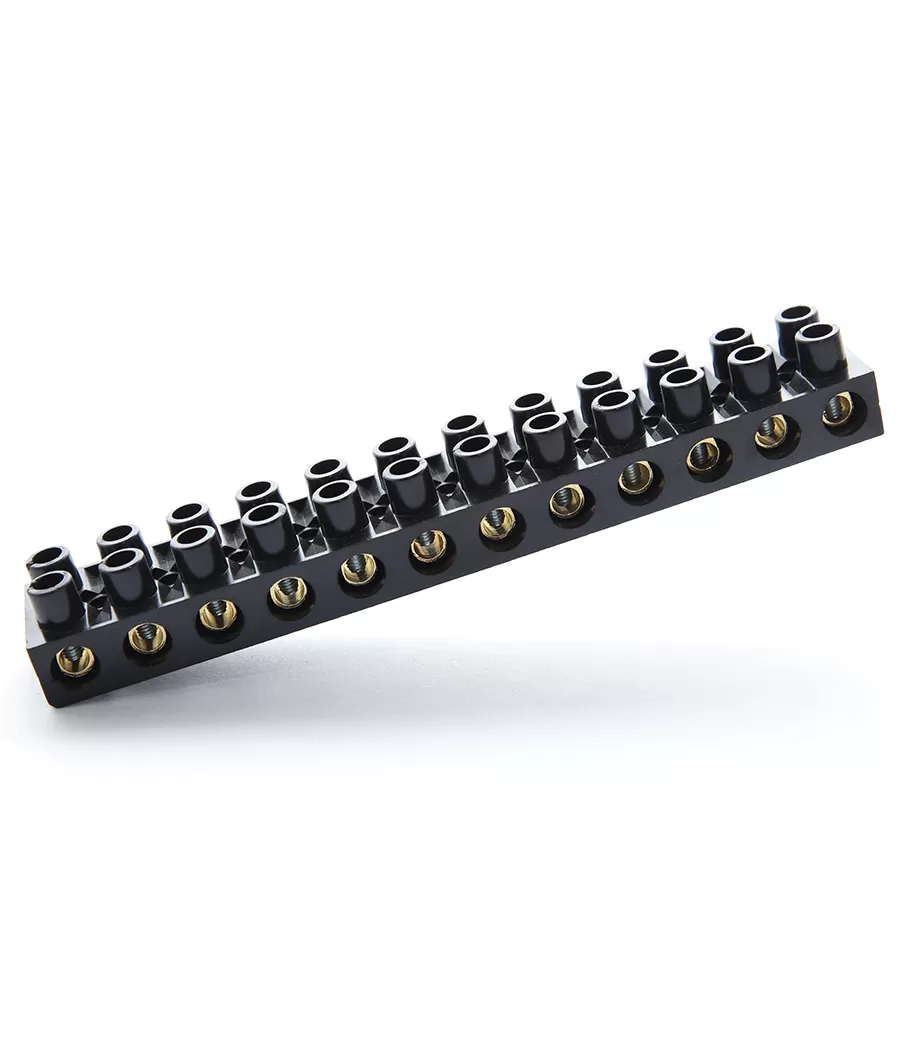

Bakelite Terminal Block

Antong provides bakelite terminal blocks with excellent heat resistance and electrical insulation. Ideal for power devices and high-temperature environments, our phenolic terminal blocks ensure safe and stable wire connections.

  • ItemNo

    SP007
  • Contact Material

    Brass
  • Termination Method

    Screw Down
  • Working Temperature

    -35℃ - 125℃℃
  • Material

    Bakelite
  • Number of Ways

    12
  • Inserts

    Brass
  • Housing

    Bakelite
  • Screws

    Steel, Zinc Plated

Bakelite Terminal Block

•Recessed screws and tubular contacts provide added safety and help prevent short circuits

• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact

• Integrated wire protectors prevent twisting and breakage of stranded wire during connection

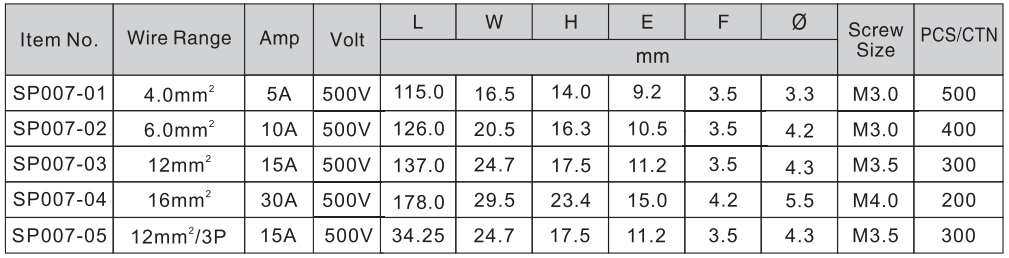

Specification

CategoryFeed Through Terminal Block
Style Bakelite Dual Row
Shell plastic material PE : Polyethylene
Polyethylene features

Good flexibility, extensibility and insulation. Inflammable

Conductor MaterialBrass
Screw MaterialSteel, zinc plated
Means of connectionScrew fixed
Rated Voltage (V)500V
Rated Current (A)5A, 10A, 15A,30A
Working Temperature-35℃ to 125℃
Standard ColorBlack
Production ProcessInjection molding

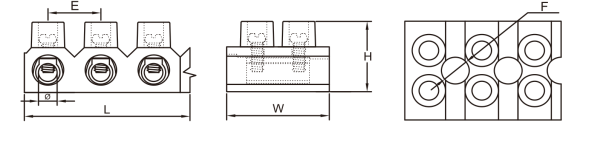

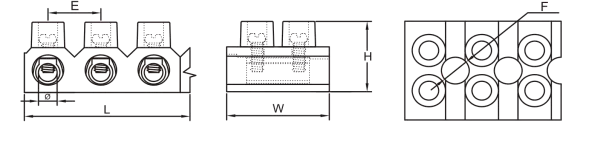

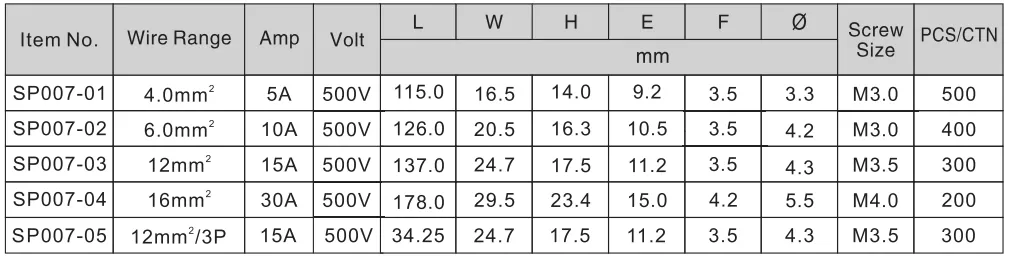

Bakelite Terminal Block(pic1)Bakelite Terminal Block(pic2)



Supply Ability & Additional Information

Productivity40, 000, 000PCS/Year
TransportationOcean,Air
Place of OriginChina
Supply Ability40, 000, 000PCS/Year
PortNingbo Port
Payment TypeT/T
Incoterm FOB,EXW,CIP

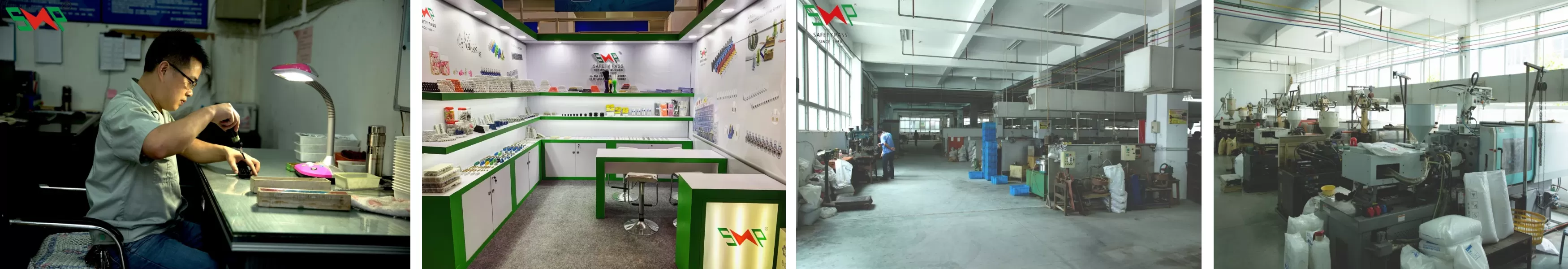

Bakelite Terminal Block(pic3)

Frequently Asked Questions

1. Can I ask for sample?

Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.

2. If I want get a products price list, where I can get it?

Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.

Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.

3. My product needs put our own logo on product or packing, what should I do?

If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

4. How many years Antong starts operate factory to produce terminal blocks?

Since 1989, AnTong has started factory operation, it’s almost 35 years.
